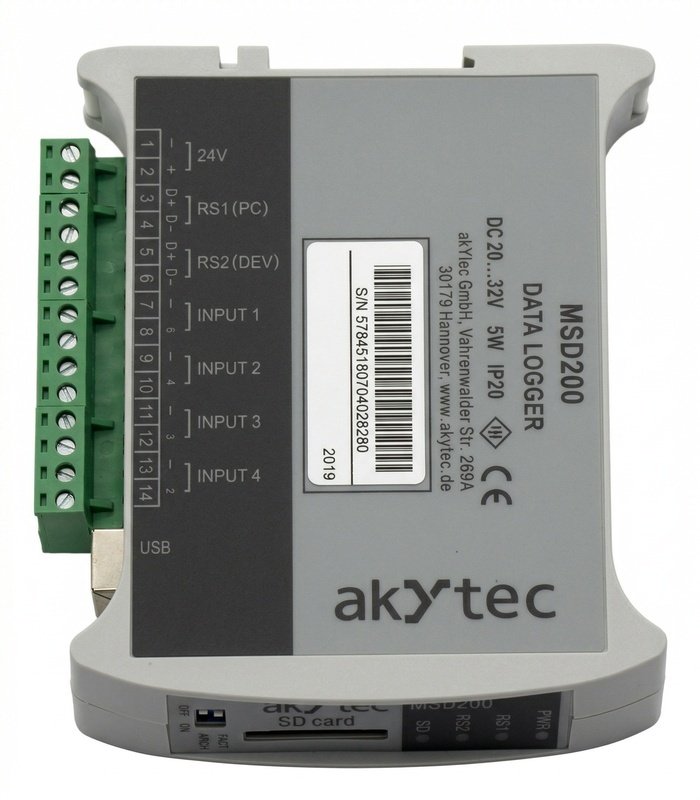

akYtec MSD200 is a DIN-rail data logger with 4 analog current inputs (0–5 mA / 0–20 mA / 4–20 mA) and up to 64 logging channels, storing data to SD/SDHC/microSD/MMC as CSV. It provides 2× RS485 (Modbus RTU/ASCII + akYtec protocol) and a USB 2.0 interface (USB Type B) for configuration/data transfer, operates on 24 V DC (20…32 V), and is designed for -20…+55 °C environments.
Onset RX3004-00-01 Remote Monitoring Station
₹27,829.26 – ₹1,54,648.83
ICP DAS DL-302 CO2 Data Logger
₹64,793.62 – ₹1,11,614.91
Description
Specification
I/O & Signal
| Number of Analog Inputs (AI) | 4 |
|---|
Communication
| Supported Protocols / Ports | ModBus RTU, ModBus ASCII, akYtec |
|---|
Power & Protection
| Power Supply Requirement | 24 (20–32) V DC |
|---|
Environmental
| Operating Temperature Range | -20 °C to +55 °C |
|---|
