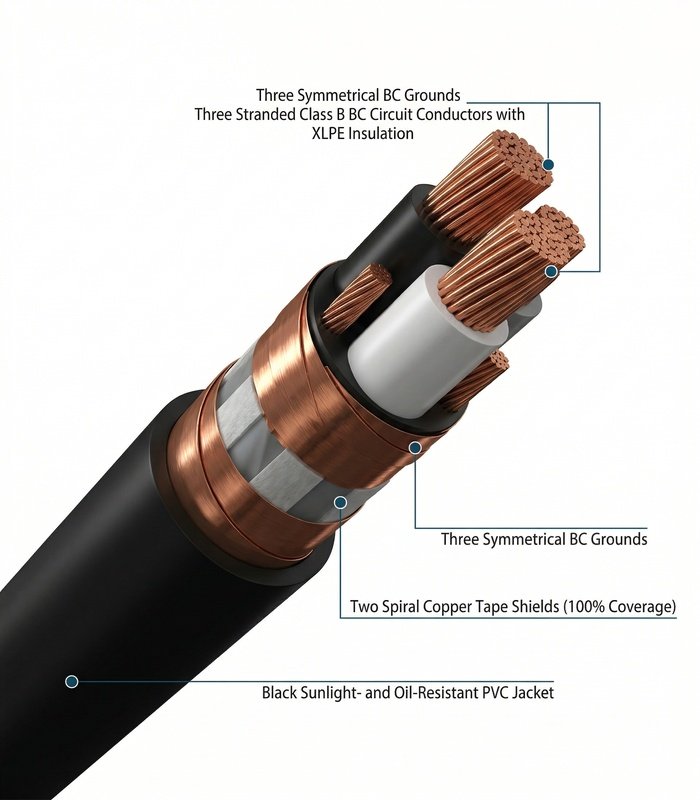

Belden 29520C is a Belden Basics VFD cable designed for variable-frequency drive motor power applications. It uses 3 stranded 16 AWG bare copper conductors with XLPE insulation, plus a symmetrical segmented ground made from 3 stranded 18 AWG conductors, dual helically applied bare copper tape shields, and a black PVC outer jacket. The official Belden page lists a nominal overall diameter of 10.1 mm, a 600 V TC-ER rating, operating range of -40°C to +90°C, and suitability for indoor, outdoor, sunlight-resistant, and burial applications.
LAPP 36432 Servo Cable
₹4,584.70 – ₹20,071.79
igus CF270 Servo Cable
₹63,068.00 – ₹63,680.99
Description
Specification
Environmental
| Indoor / Outdoor Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Operating Temperature Range | -40 °C to +90 °C |
Physical
| Dimensions (L×W×H) | Overall cable diameter 10.1 mm |
|---|
Safety / compliance
| Voltage Class | 600 V (TC-ER) |
|---|
Contact us for Data Sheet
