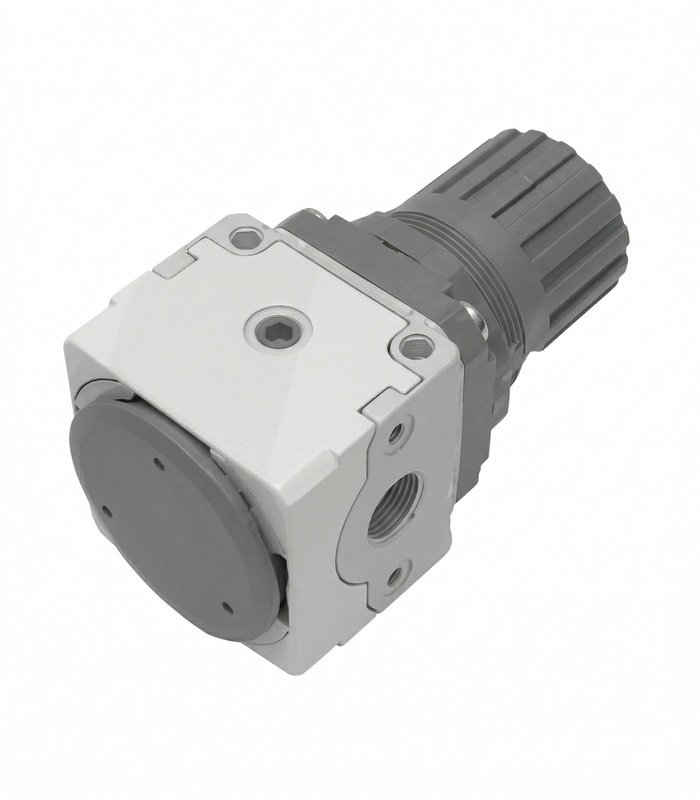

MC104-R00 is a Camozzi Series MC modular compact diaphragm pressure regulator for compressed air service. The official product page shows a self-relieving standard configuration with G1/4 ports, no pressure gauge, and no by-pass valve, while the series catalog lists an inlet pressure range of 0 to 16 bar, standard outlet regulation range of 0.5 to 10 bar, operating temperature of -5 °C to 50 °C, and materials including Zama, brass, NBR, and technopolymer.
Norgren R07-200 Pressure Regulator
₹4,796.76 – ₹14,175.00
Festo MS4-LR-1/4 Pressure Regulator
₹2,699.00 – ₹7,753.00
Description
Specification
Control / Performance
| Control Mode | Self-relieving pressure regulator |
|---|
Environmental
| Operating Temperature Range | -5 °C to 50 °C |
|---|
Physical

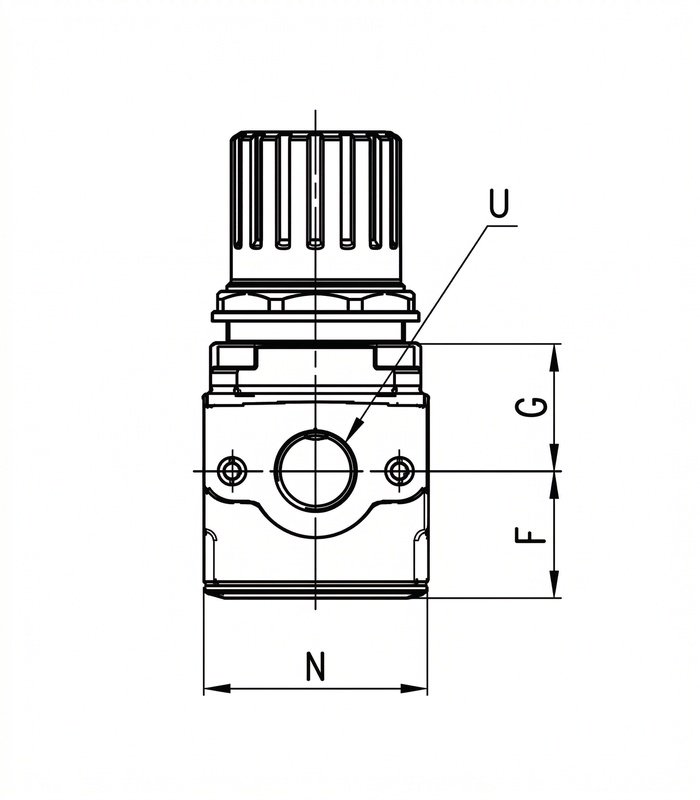

| Dimensions (L×W×H) | 94 × 56 × 38 mm |
|---|
Commercial Basics
| Variant / Series | Optional terminal flanges MC104-FL, optional mounting bracket MC104-ST |
|---|
