KDS-SR 8/16 BK is a screw-mounted cable-entry frame with a foamed-in seal for routing multiple cables through a rectangular panel cut-out. It is part of CONTA-CLIP’s KDS system and is intended to work with matching inlays and sealing elements for flexible cable population. The frame provides IP66 protection, uses a glass-fibre reinforced polyamide body with polyurethane-based sealing material, and offers a compact industrial format for cabinet and enclosure cable entry applications.
Harting 19000005182 Cable Gland
₹328.95 – ₹399.77
Icotek 50508 Cable Entry Plate
₹1,111.50 – ₹1,201.07
Conta-Clip KDS-SR 8/16 Cable Entry System
| Brand | : | CONTA-CLIP |
| Category | : | Multi-cable entry plates/grommets |
| Model Number | : | KDS-SR 8/16 BK |
| Manufacturer Part Number | : | 28502.4 |
Dispatch within 10 days
₹2,640.83 – ₹3,002.08
0
People watching this product now!
Description
Specification
Power & Protection
| Protection Features | IP66 |
|---|
Environmental
| Operating Temperature Range | -40 °C to 120 °C |
|---|
Physical

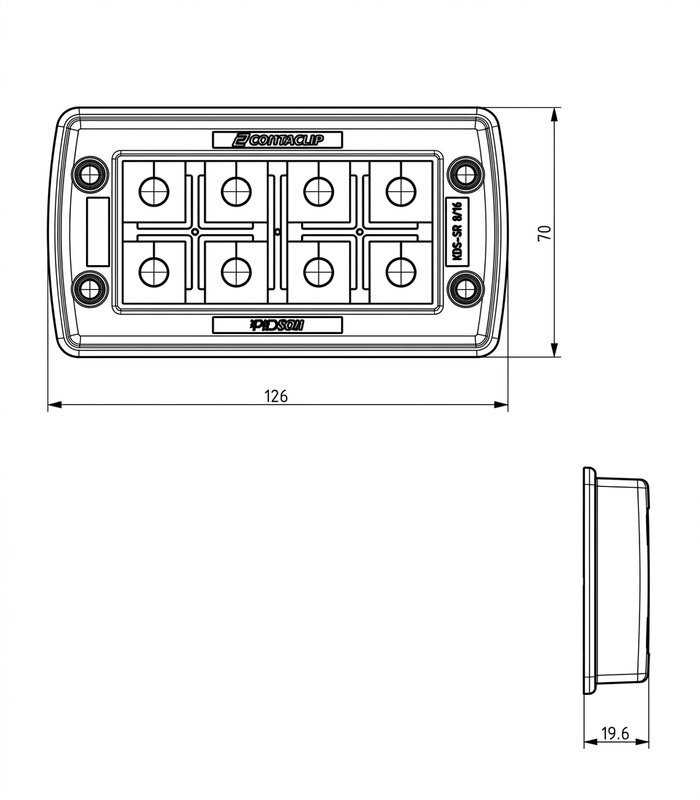

| Dimensions (L×W×H) | 126 × 70 × 19.6 mm |
|---|---|
| Enclosure / Material | Polyamide 6.6, glass-fibre reinforced, sealing material polyurethane-based |
