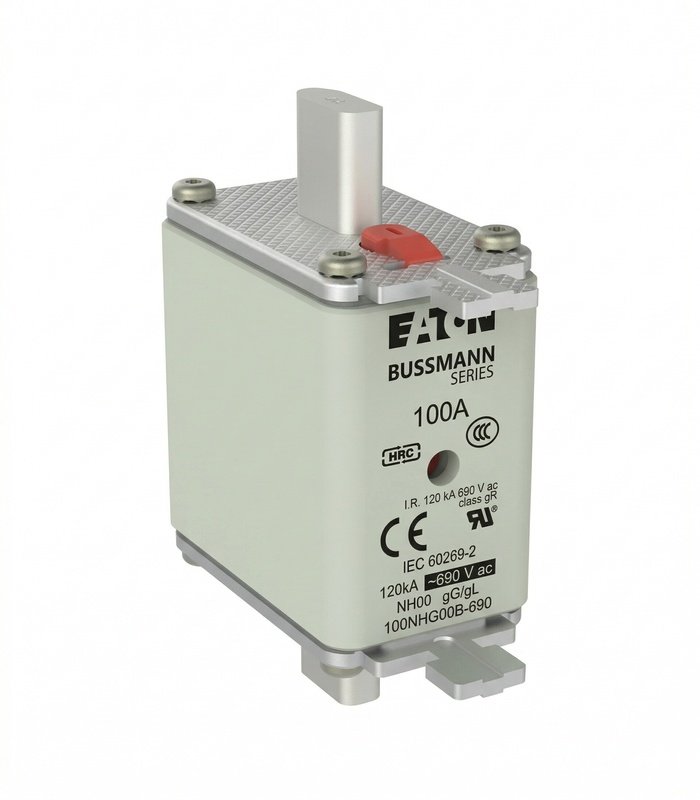

Eaton 100NHG00B-690 is a Bussmann series low-voltage NH fuse rated 100 A at 690 V AC in NH00 square-body format with knife blade contacts. It is designed for cable and equipment protection in industrial, utility, solar, and wind applications, with Class gG/gL characteristics and 120 kA breaking capacity. The fuse uses a ceramic body with silver-plated copper contact plates and includes a combination fuse status indicator with live gripping lug construction.
Siemens 3NA3804 Fuse
₹3,627.70 – ₹9,611.94
Mersen K227962 NH Fuse
₹23,730.66 – ₹27,712.82
Description
Specification
Electrical Input/Output
| Output Current | 100 A |
|---|---|
| Output Voltage | 690 V AC |
Power & Protection
| Protection Features | 120 kA breaking capacity, Class gG/gL, cable/equipment protection, combination fuse status indicator, IP00 |
|---|
Physical
| Dimensions (L×W×H) | 79 × 30 × 58 mm |
|---|
