Festo MSB6-1/2 Air Prep Unit

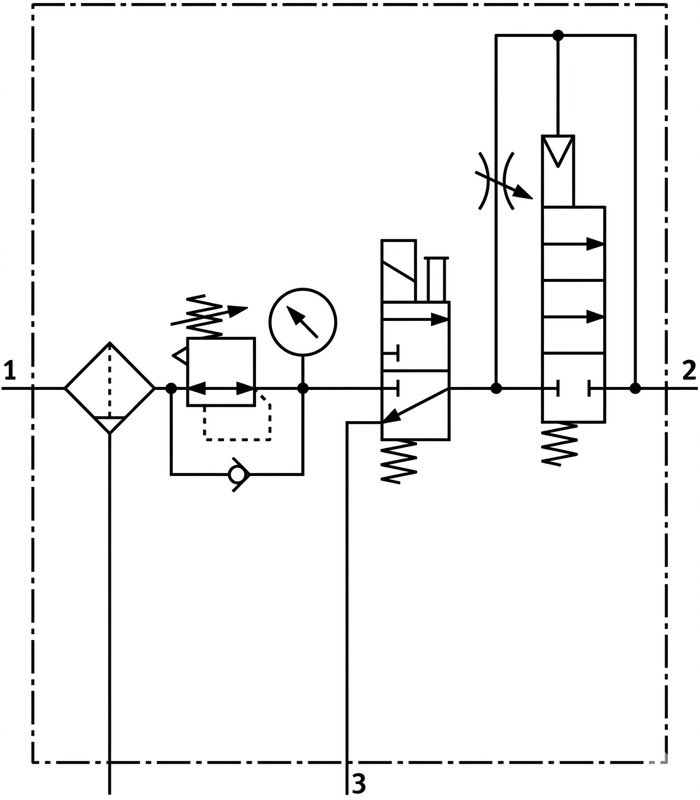

MSB6-1/2:J1D1A1-WP is a Festo air preparation combination unit in the MSB6 series. The official datasheet states that it combines a soft-start valve, an on/off valve, and a filter regulator with pressure gauge, with 40 µm filtration, 4.5 bar to 18 bar operating pressure, 4 bar to 12 bar pressure regulation range, and 3100 l/min normal nominal flow rate. It uses a 24 V DC coil with 1.5 W power, has G1/2 pneumatic connections, and uses a die-cast aluminum housing with a PC bowl and plastic bowl guard. The ambient and medium temperature range is -10 °C to 60 °C.
