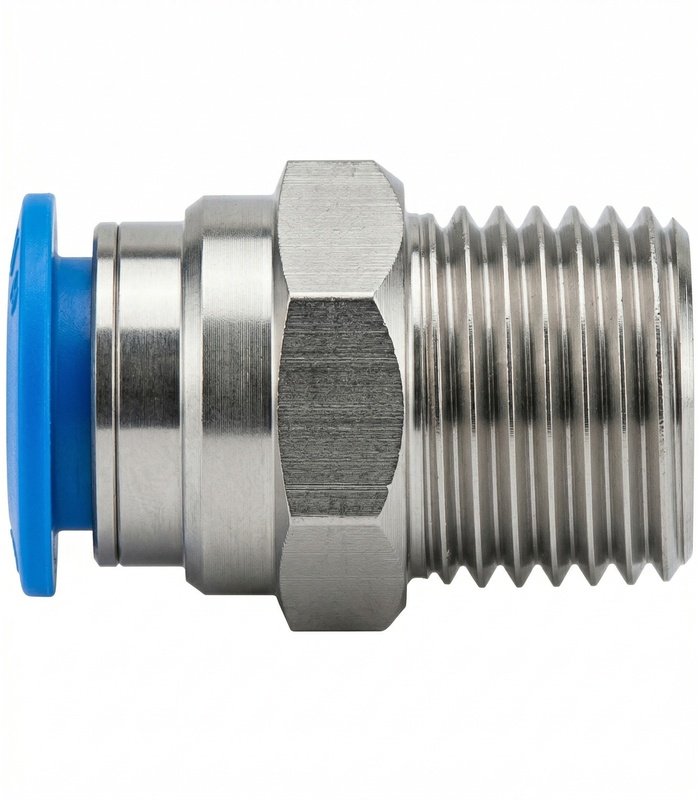

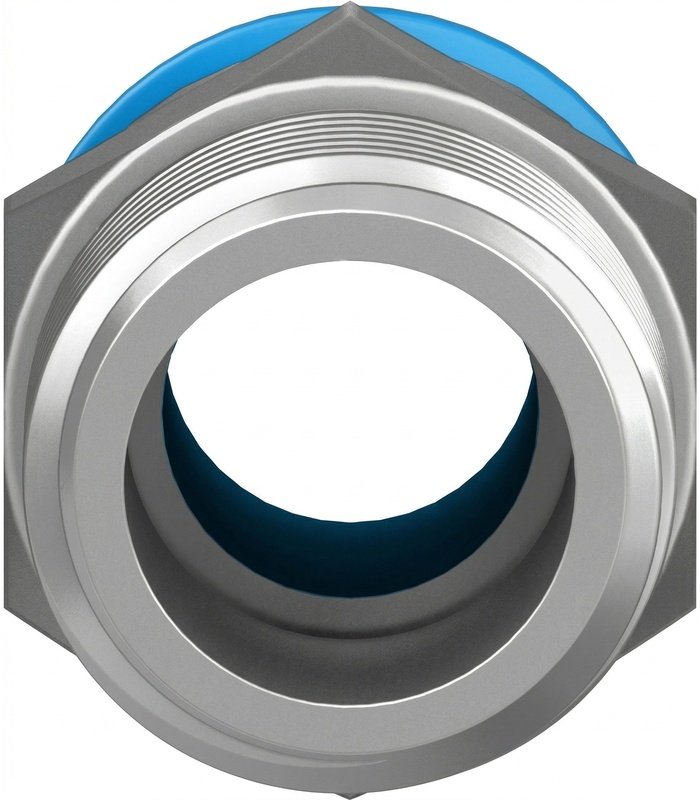

Push-in fitting QS-1/4-8 is a straight push-in fitting with a push-pull principle. It uses an external thread R1/4 on port 1 and is designed for pneumatic tubing with 8 mm outside diameter on port 2. The fitting is suitable for compressed air and water service, has a brass nickel-plated housing, and is rated for an ambient temperature range of -10 °C to 80 °C.
SMC KQ2H08-02AS Push-in Fitting
₹79.46 – ₹4,317.56
Parker 3108-08 Push-in Fitting
₹1,050.17 – ₹3,216.56
Description
Specification
Environmental
| Operating Temperature Range | -10 °C to 80 °C |
|---|
Physical
| Enclosure / Material | Housing: Brass, nickel-plated, releasing ring: POM, tubing seal: NBR, tube retaining claw: High-alloy stainless steel |
|---|
Safety / compliance
| Certifications / Standards | RoHS-compliant, LABS (PWIS) conformity VDMA24364-B1/B2-L, Cleanroom suitability Class 4 according to ISO 14644-1 |
|---|
Commercial Basics
| Variant / Series | QS (Quick Star) |
|---|
