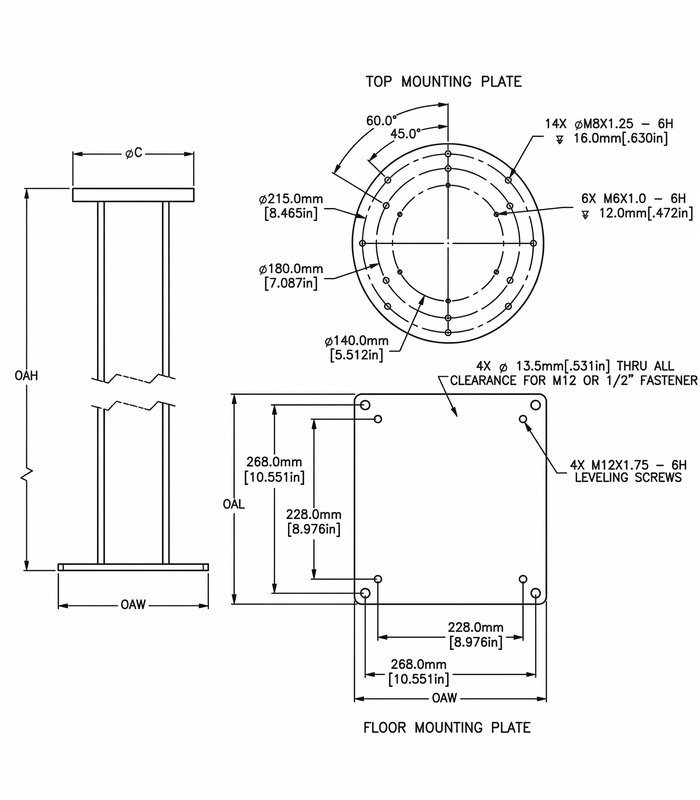

The Haas Cobot Stand, 24″ Fixed Height is a heavy-duty steel pedestal designed to elevate a Haas cobot 24 in (610 mm) above the floor for added application reach. It uses a top mounting plate with multiple bolt-hole patterns to fit all Haas cobots, and the base plate includes leveling screws for easier installation and adjustment. Haas positions it as a sturdy support accessory for HC5, HC10, and HC15 cobot setups.
Pilz 4R000001 Safety IO Module
₹1,16,727.20 – ₹1,89,186.42
Swivellink RB-PED-30-CB200 Robot Pedestal
₹64,956.48 – ₹74,700.28
Description
Specification
Physical
| Dimensions (L×W×H) | 11.8 in × 11.8 in × 24.0 in (300.0 × 300.0 × 609.6 mm) |
|---|---|
| Enclosure / Material | Steel |
Display / HMI / Vision Specifics
| Camera Specs | CBT STAND-FIXED 24 |
|---|
Commercial Basics
| Variant / Series | Leveling screws, top mounting plate with multiple bolt-hole patterns for all Haas cobots |
|---|
Contact us for Data Sheet
