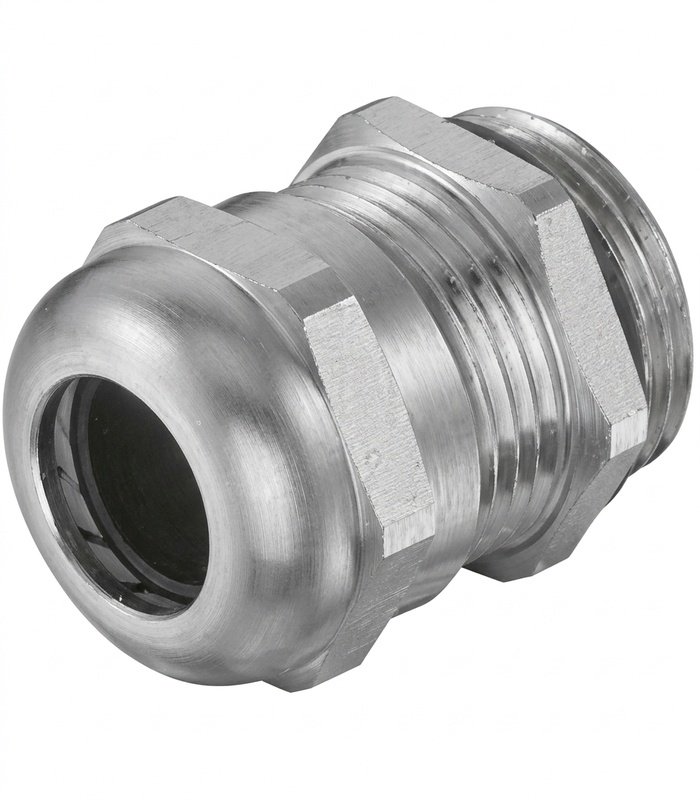

HARTING 19000005082 Han CGM-M M20x1,5 D.6-12mm is a brass metal cable gland from the Han® CGM-M accessory series. The official HARTING data gives an M20 size, 6 mm to 12 mm clamping range, nickel-plated brass body, PA clamping ring, NBR seal, and protection up to IP69 / IPX9K for demanding connector housing and enclosure cable-entry applications.
LAPP 53112020 Cable Gland
₹435.05 – ₹884.03
Phoenix 1411125 Cable Gland
₹45.23 – ₹79.96
Description
Specification
Power & Protection
| Protection Features | IP68, IP69 / IPX9K |
|---|
Environmental
| Operating Temperature Range | -40 °C to 100 °C |
|---|
Physical
| Enclosure / Material | Brass, seal NBR, clamping ring Polyamide (PA), nickel-plated |
|---|
Commercial Basics
| Mandatory selection codes | M20, clamping range 6 mm–12 mm, tightening torque ≤10 Nm |
|---|
Contact us for Data Sheet
