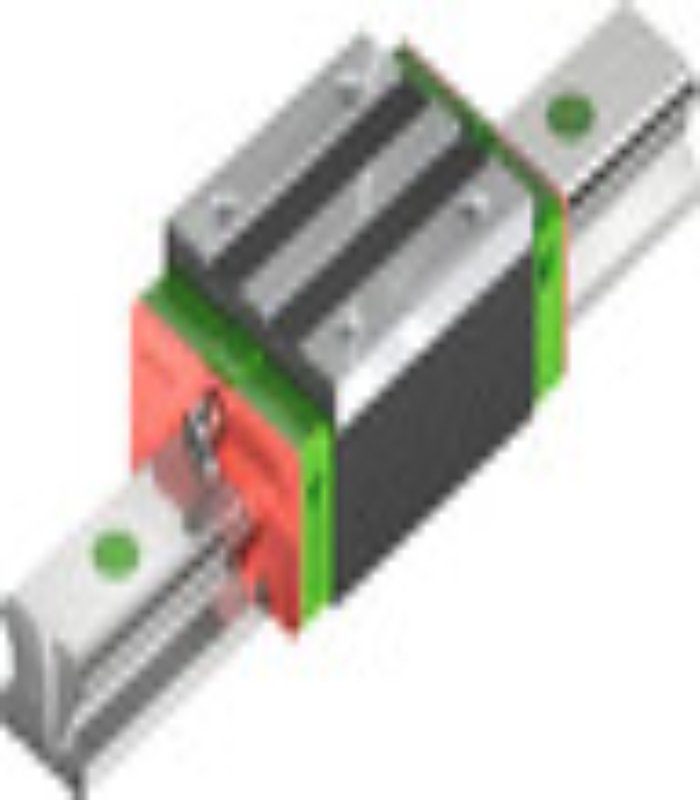

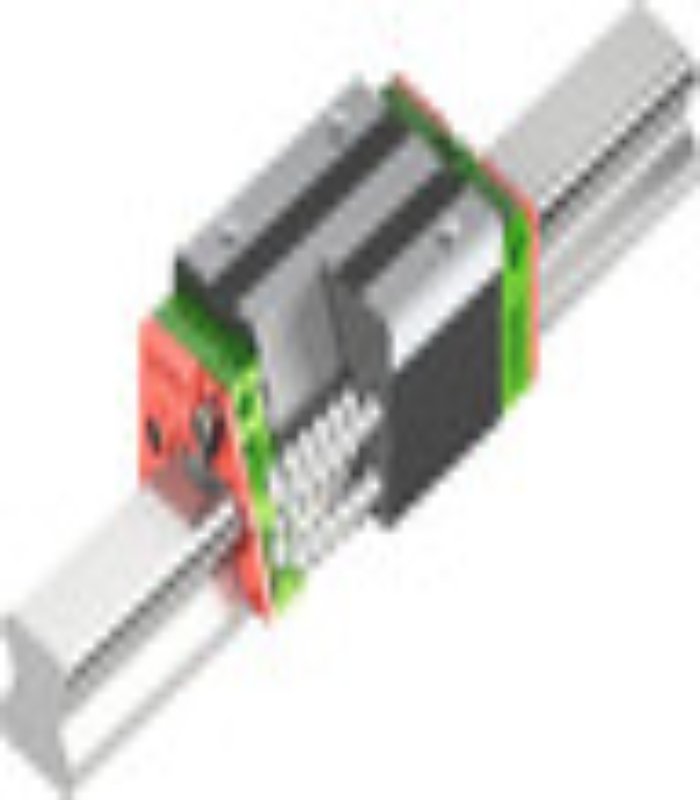

HIWIN HGH20CAZ0H is a heavy-duty linear guideway block (Size 20). It features a 4-row circular-arc groove design for high load capacity and rigidity in all directions, with a “Z0” light preload.
Description
Specification
Mechanical ratings
| Max Load (N/kg) |
C0 36.68 kN = 36,680 N (~3,740 kg) |
|---|---|
| Shaft Type / Diameter |
HGH20 (size 20) |
Physical
| Dimensions (L×W×H) |
Height 30 mm × width 44 mm |
|---|---|
| Enclosure / Material |
Carbon steel |
Contact us for Data Sheet
