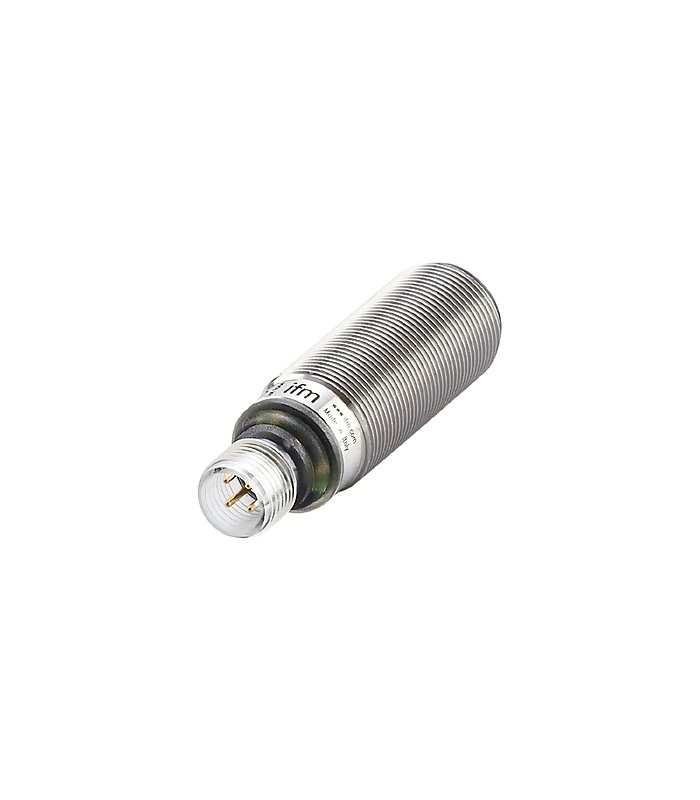

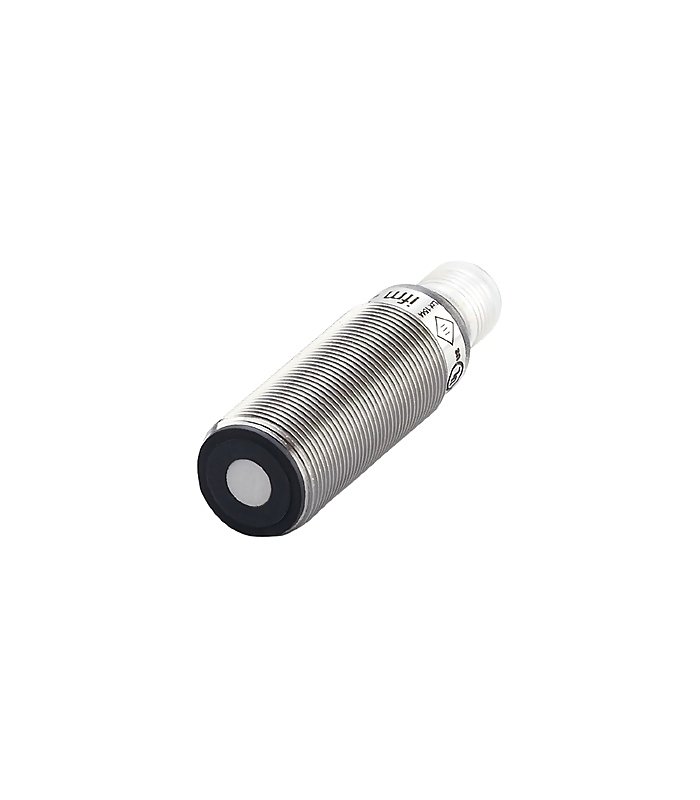

UGT524 is an M18 ultrasonic sensor in a stainless-steel housing (L = 60.5 mm) designed for reliable non-contact distance/detection tasks. It runs on 10…30 V DC and provides one PNP switching output with IO-Link (IEC 61131-9) for parameterization and diagnostics. The output load is up to 100 mA, with built-in reverse-polarity, short-circuit, and overload protection for robust field use. Measurement performance includes repeatability <0.7% and 1 mm resolution, and it operates across -20…70 °C. It uses an M12 (A-coded) connector and is supplied with two M18 stainless-steel lock nuts for mounting.
Delta Mobrey S01DB Float Switch
₹1,01,641.47 – ₹1,54,027.64
Endress+Hauser Prosonic FMU40 Ultrasonic Level Sensor
₹1,59,660.58 – ₹2,48,161.92
ifm UGT524 Ultrasonic Sensor
| Brand | : | ifm electronic |
| Category | : | Ultrasonic Level Sensors |
| Model Number | : | UGT524 |
| Manufacturer Part Number | : | UGB00300EOKG/IO-Link/US |
Dispatch within 10 days
₹13,632.57 – ₹20,810.54
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Output Current | 100 mA |
|---|---|
| Input Voltage | 10–30 V DC |
Communication
| Supported Protocols / Ports | IO-Link (IEC 61131-9) |
|---|
Environmental
| Operating Temperature Range | -20 °C to 70 °C |
|---|
Contact us for Data Sheet
