KOGANEI CDAS32X10-ZE135A2 is a Jig cylinder C series pneumatic cylinder with a 32 mm bore and 10 mm stroke. It is a double-acting sensor-cylinder configuration for air service, built in a compact short-body form for space-saving machine designs. The series specification lists an operating temperature range of 0 to 60°C, and the main materials include an anodized aluminum-alloy cylinder body, a chrome-plated stainless-steel piston rod, and NBR packing.
Festo U-1/8-I Silencer
₹197.95 – ₹823.21
SMC CDQ2B32-10DZ Compact Cylinder
₹1,570.36 – ₹7,565.00

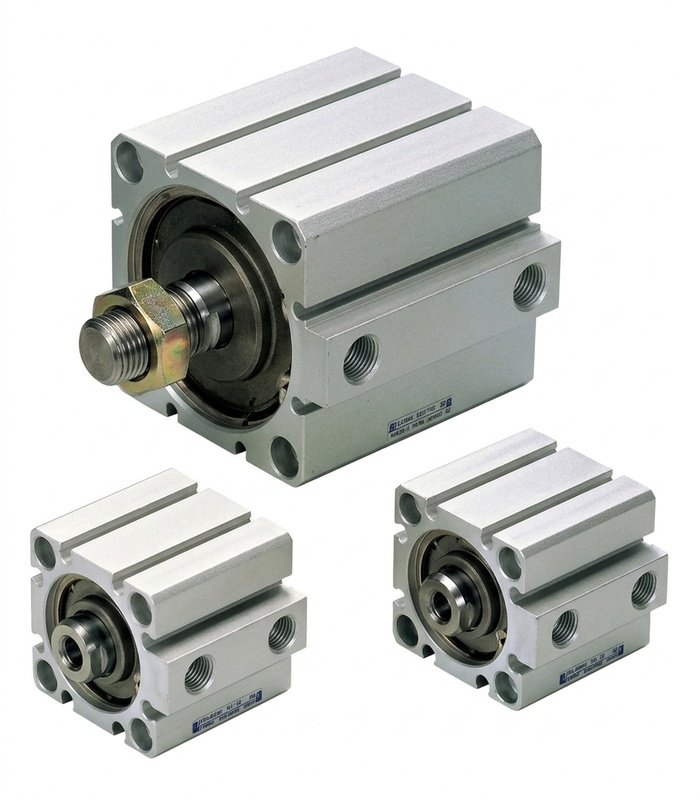

Koganei CDAS32X10 Compact Cylinder
| Brand | : | KOGANEI |
| Category | : | Compact cylinders |
| Model Number | : | CDAS32X10-ZE135A2 |
| Manufacturer Part Number | : | CDAS32X10-ZE135A2 |
Dispatch within 10 days
₹10,652.81 – ₹11,700.00
0
People watching this product now!
Description
Specification
Control / Performance
| Control Mode | Double acting type |
|---|
Mechanical ratings
| Stroke (mm) | 10 |
|---|
Environmental
| Operating Temperature Range | 0 °C to 60 °C |
|---|
Physical
| Enclosure / Material | Cylinder main body: Aluminum alloy (anodizing), piston rod: Stainless steel (with chrome plating), packing: Synthetic rubber (NBR) |
|---|
Contact us for Data Sheet
