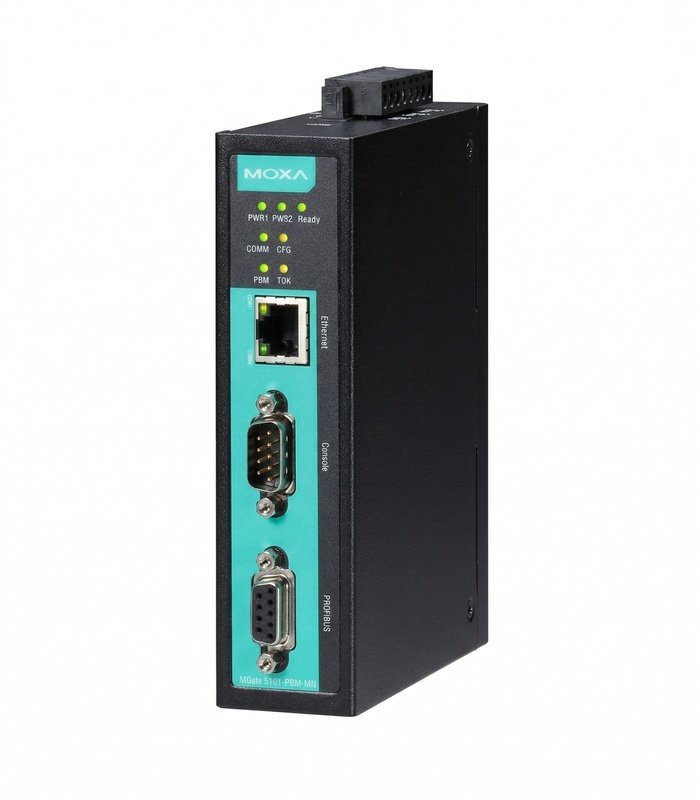

Moxa MGate 5101-PBM-MN is a 1-port PROFIBUS DP-V1 master to Modbus TCP gateway that connects PROFIBUS field devices (e.g., drives/instruments) to Modbus TCP hosts. It supports Modbus TCP client/server modes and PROFIBUS DP-V1 master operation, runs on 12–48 VDC with a screw-fastened Euroblock power connector, and provides built-in isolation (1.5 kV Ethernet magnetic isolation and 2 kV PROFIBUS isolation) in a rugged IP30 metal DIN-rail housing rated for 0 to 60°C.
HMS AB7641-F Modbus Gateway
₹83,047.75 – ₹1,06,011.20
HMS AB7629-F PROFIBUS Modbus Gateway
₹1,43,374.76 – ₹1,49,323.96
Moxa MGate 5101-PBM-MN PROFIBUS Modbus Gateway
| Brand | : | Moxa |
| Category | : | Modbus-Profibus gateways |
| Model Number | : | MGate 5101-PBM-MN |
| Manufacturer Part Number | : | MGate 5101-PBM-MN |
Dispatch within 10 days
₹1,11,285.36 – ₹1,32,637.48
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Power | 12–48 V DC |
|---|
Communication
| Connector Type | RJ45, DB9 female, Screw-fastened Euroblock terminal |
|---|
Environmental
| Operating Temperature Range | 0 °C to 60 °C |
|---|
Physical
| Dimensions (L×W×H) | 36 × 105 × 140 mm |
|---|
