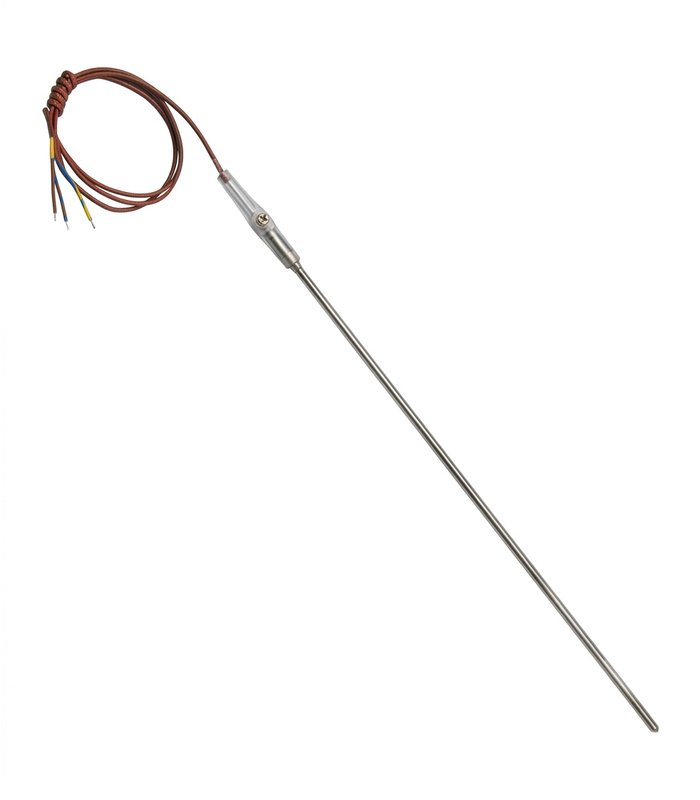

OMEGA TJ36-CASS-116U-6 (MPN: TJ36-CASS-116U-6) is a heavy-duty transition-joint thermocouple probe (TJ36 series), Type K (Chromel-Alumel) with a 304 stainless-steel sheath. This build uses a 1/16 in diameter, 6 in long sheath with an ungrounded junction and PFA-coated lead wire (typically 24 AWG), intended for industrial temperature sensing where a rugged metal-sheathed probe with flexible lead transition is required.
Omega SA1-K Surface Thermocouple
₹12,760.59 – ₹14,036.65
WIKA TC10-B Thermocouple
₹16,727.24 – ₹17,692.12
Omega TJ36 Thermocouple Probe
| Brand | : | OMEGA Engineering |
| Category | : | Thermocouples |
| Model Number | : | TJ36-CASS-116U-6 |
| Manufacturer Part Number | : | TJ36-CASS-116U-6 |
Dispatch within 10 days
₹8,635.83 – ₹8,702.84
0
People watching this product now!
Description
Specification
I/O & Signal
| Signal Type | Thermocouple (Type K, CHR-AL) |
|---|
Environmental
| Operating Temperature Range | Transition and wire rated to 260 °C (500 °F) |
|---|
Physical
| Dimensions (L×W×H) | Sheath length: 6 in, sheath dia: 1/16 in, lead wire length: 1 m (40″) standard |
|---|---|
| Enclosure / Material | 304 stainless steel sheath; PFA-coated stranded 24 AWG lead wire |
Contact us for Data Sheet
