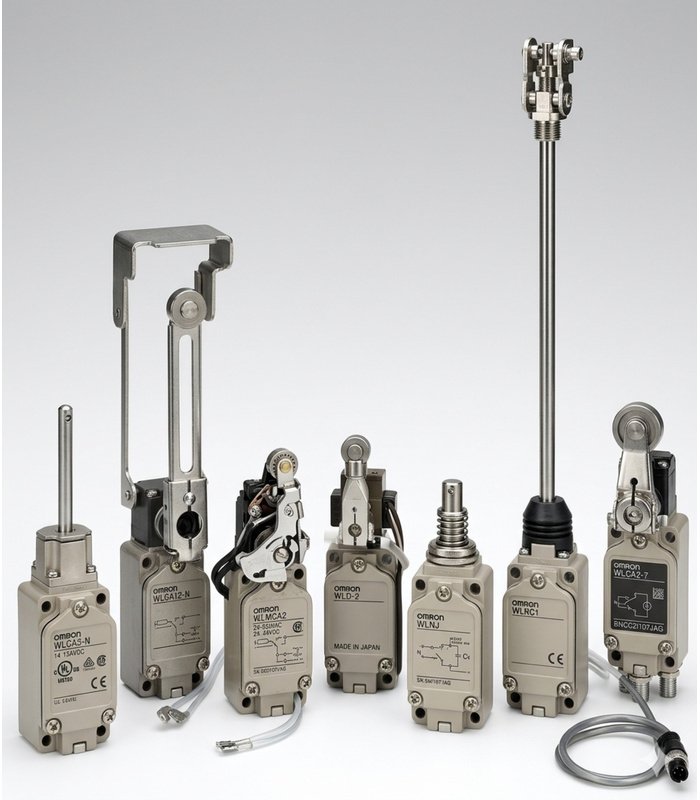

WLCA2-2N is a WL Series general-purpose overtravel two-circuit limit switch with a roller lever, intended for passing-dog applications. The WL family uses DPDB operation, provides IEC IP67 protection, and is presented by Omron as a wide-range industrial limit-switch series with approvals including UL, CSA, TÜV, EN/IEC, and CCC.
Siemens 3SE5312-0SE12 Safety Position Switch
₹19,763.21 – ₹86,759.88
Telemecanique XCKM121 Limit Switch
₹12,807.56 – ₹13,555.77
Omron WLCA2-2N Limit Switch
| Brand | : | Omron |
| Category | : | Standard mechanical limit switches |
| Model Number | : | WLCA2-2N-N |
| Manufacturer Part Number | : | WLCA2-2N-N |
Dispatch within 10 days
₹1,551.70 – ₹13,652.09
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Output Voltage | 125/250/480/600 V AC, 8/14/30/125/250 V DC |
|---|
Power & Protection
| Inrush Current / Current Draw | NC 30 A max., NO 20 A max. |
|---|
Environmental
| Operating Temperature Range | -10 °C to +80 °C (with no icing) |
|---|
Safety / compliance
| Certifications / Standards | UL/CSA, TÜV, EN 60947-5-1, CCC |
|---|
