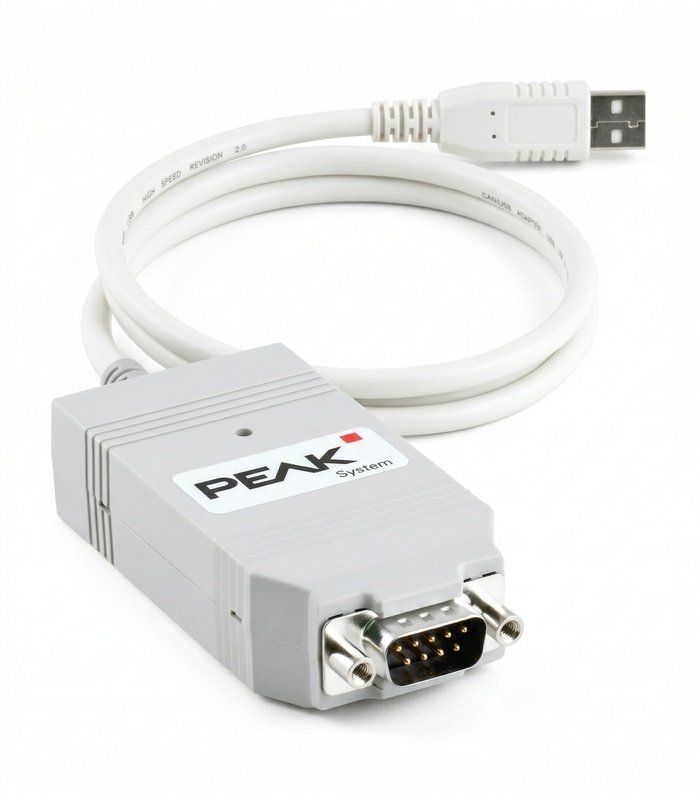

PEAK-System PCAN-USB opto-decoupled (IPEH-002022) is a USB-to-CAN interface for connecting a PC to a high-speed CAN bus (ISO 11898-2). It supports CAN 2.0A/2.0B with bit rates from 5 kbit/s to 1 Mbit/s, uses a 9-pin D-Sub (CiA 106) for CAN, and is powered from the USB port (+5 V DC). The opto-decoupled version provides galvanic isolation up to 500 V between the PC and CAN side, with optional CAN termination and optional 5 V CAN_V+ output via solder settings. It ships with PCAN-View and the PCAN-Basic API plus drivers for Windows and Linux.
Waveshare USB-CAN-A CAN Adapter
₹1,759.41 – ₹5,100.38
Ixxat USB-to-CAN FD CAN Adapter
₹46,724.34 – ₹71,610.50
PEAK PCAN-USB CAN Adapter
| Brand | : | PEAK-System |
| Category | : | CAN |
| Model Number | : | PCAN-USB opto-decoupled (IPEH-002022) |
| Manufacturer Part Number | : | IPEH-002022 |
Dispatch within 10 days
₹26,527.62 – ₹32,890.47
0
People watching this product now!
Description
Specification
Communication
| Supported Protocols / Ports | CAN ISO 11898-1:2015 (CAN 2.0A/B), bit rates 5 kbit/s…1 Mbit/s |
|---|---|
| Interface Type | USB Full-Speed (compatible with USB 1.1/2.0/3.0) |
| Connector Type | Computer: USB plug type A, CAN: D-Sub (m) 9-pin (CiA 106) |
Environmental
| Operating Temperature Range | -40 °C to +85 °C |
|---|
