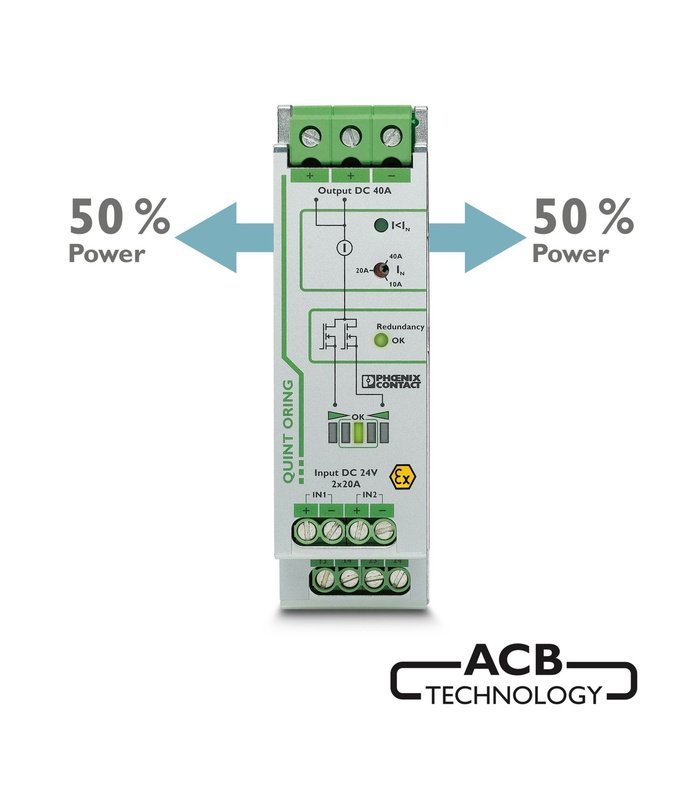

Phoenix Contact QUINT-ORING/24DC/2X10/1X20 is an active redundancy module with protective coating for 24 V DC systems. It uses Auto Current Balancing (ACB) technology to distribute the load symmetrically between two power supplies, helping extend service life while providing 2 x 10 A redundant operation or 1 x 20 A increasing-power operation. The DIN-rail module includes redundancy and ACB monitoring contacts, integrated surge protection, and a mounted UTA 107/30 adapter for industrial control cabinet applications.
Siemens 6EP4136-3AB00 UPS Module
₹30,509.87 – ₹63,252.17
PULS YR40.241 Redundancy Module
₹18,000.66 – ₹24,408.83
Phoenix 2320173 Redundancy Module
| Brand | : | Phoenix Contact |
| Category | : | Redundancy modules |
| Model Number | : | 2320173 |
| Manufacturer Part Number | : | 2320173 |
Dispatch within 10 days
₹17,248.73 – ₹20,749.45
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Input Voltage | 24 V DC nominal, 18–28 V DC (SELV) |
|---|---|
| Output Current | 20 A (Increasing power), 2 × 10 A (Redundancy), Static Boost 30 A, SFB 120 A (12 ms) |
| Output Voltage | UIN – 0.1 V |
Environmental
| Operating Temperature Range | -25 °C to 70 °C |
|---|
