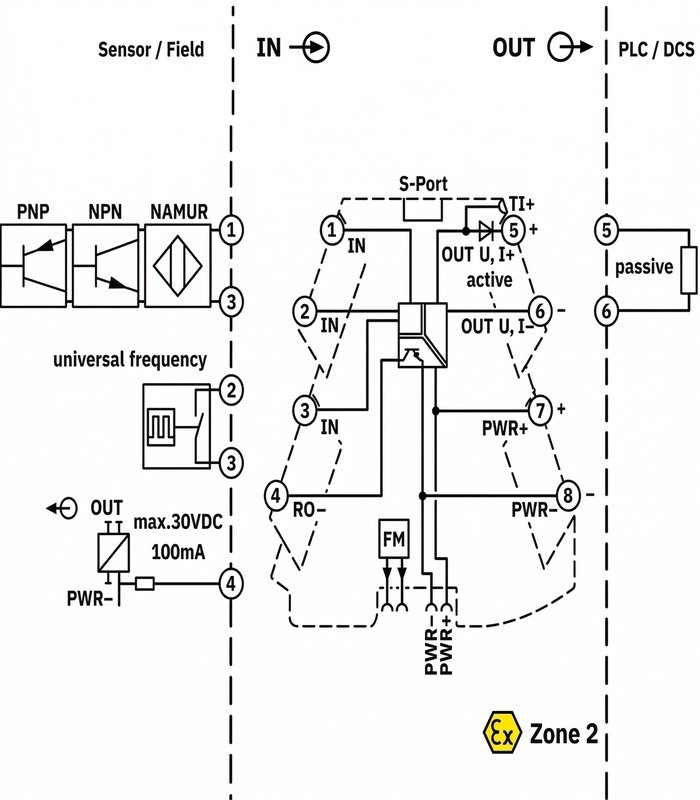

Universally configurable frequency measuring transducer (MINI Analog Pro) that converts frequency (Hz/rpm) and PWM signals into standard analog outputs (voltage or current), and also provides a transistor switching output (1 N/O). Supports common input sources such as NAMUR sensors, NPN/PNP transistor outputs, dry contacts, frequency generators, and encoder signals (HTL/TTL/S0). Configurable via DIP switches and software/app, with 3-way reinforced isolation, fast response (<35 ms for f > 500 Hz), and wide operating temperature range (-40 to +70 °C) for DIN-rail control-cabinet installations.
HMS AB7649-F EtherNetIP PROFINET Gateway
₹88,480.91 – ₹2,02,123.49
Weidmuller ACT20P-PRO-FI Signal Converter
₹43,495.09 – ₹51,713.57
Phoenix 2902056 Frequency Transducer
| Brand | : | Phoenix Contact |
| Category | : | Frequency / Pulse to analog modules |
| Model Number | : | MINI MCR-2-F-UI (2902056) |
| Manufacturer Part Number | : | 2902056 |
Dispatch within 10 days
₹24,670.06 – ₹27,032.95
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Power | 9.6–30 V DC (nominal 24 V DC) |
|---|---|
| Output Current | Max. current output signal 24.6 mA (ranges: 0–20 mA / 4–20 mA / 0–10 mA / 2–10 mA via DIP, 0–21 mA via software) |
| Output Voltage | Max. voltage output signal 12.3 V (ranges: 0–10 V / 2–10 V / 0–5 V / 1–5 V via DIP, 0–10.5 V via software) |
Environmental
| Operating Temperature Range | -40 °C to 70 °C |
|---|
