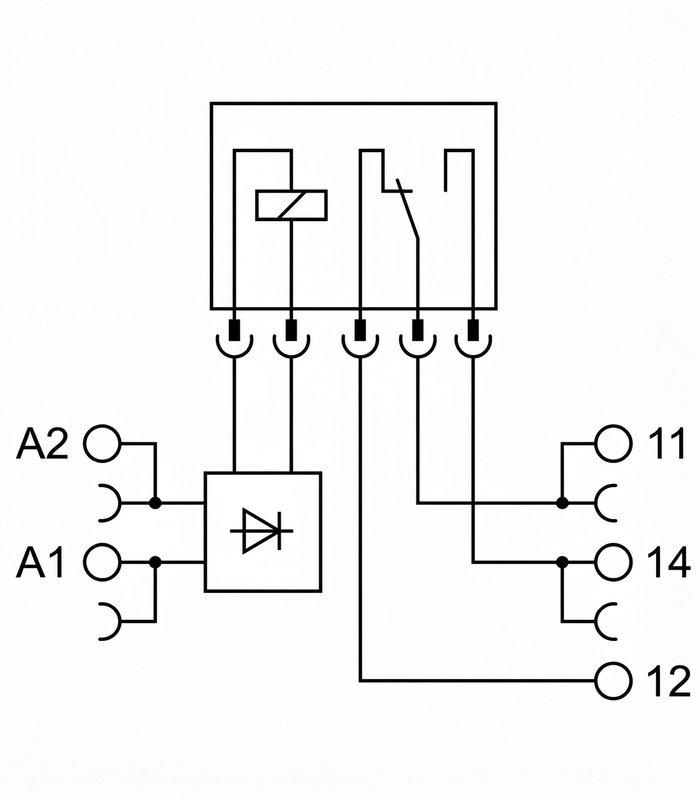

Phoenix Contact 2966171 is a PLC-INTERFACE relay module with a 24 V DC input coil and 1 changeover power contact. It is designed for DIN-rail mounting, uses screw connection terminals, supports switching up to 250 V AC/DC with 6 A continuous current, and includes reverse-polarity and freewheeling diode protection for reliable control-panel interfacing.
Omron G2RV-ST700 Relay Module
₹350.00 – ₹2,127.44
Weidmuller 1122770000 Relay Module
₹992.19 – ₹1,220.80
Description
Specification
Electrical Input/Output
| Input Voltage | 24 V DC nominal, 18.5–33.6 V DC range |
|---|---|
| Output Current | 6 A |
Communication
| Connector Type | Screw connection |
|---|
Environmental
| Operating Temperature Range | -40 °C to 70 °C |
|---|
