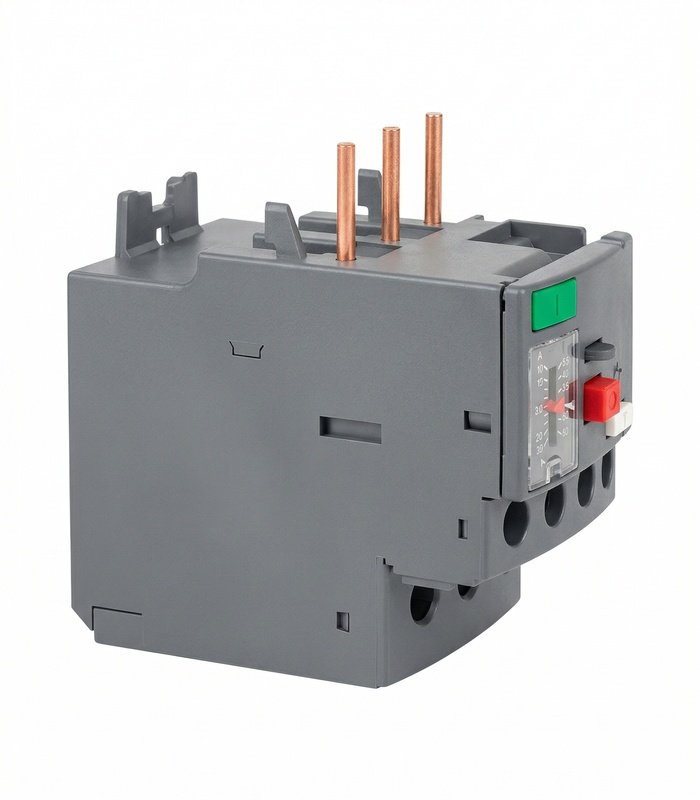

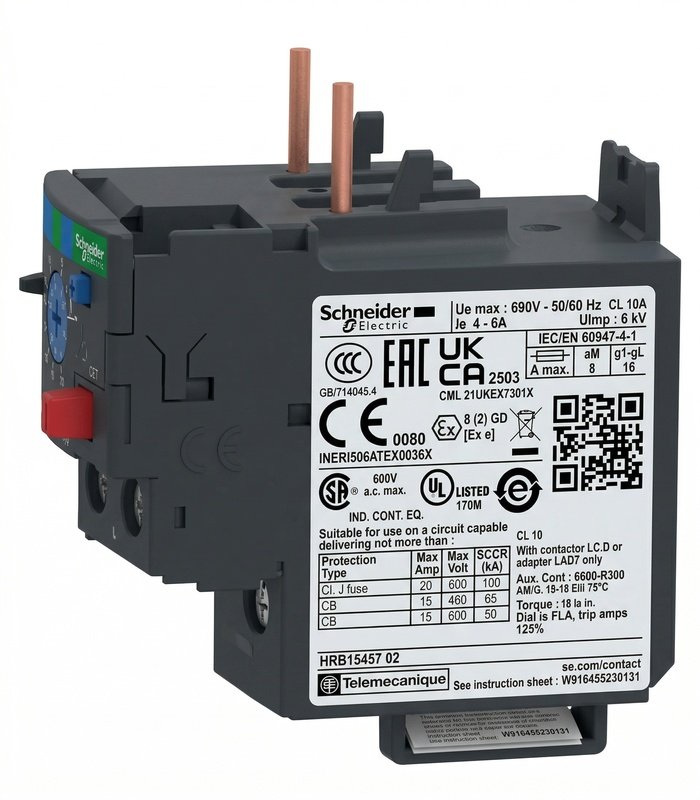

Schneider Electric LRD10 is a TeSys LRD differential thermal overload relay with an adjustable 4 to 6 A setting range and class 10A tripping, designed for protection of 3-phase motors up to 2.2 kW at 400 V. It provides phase-failure and load-unbalance detection, 1 NO + 1 NC auxiliary contacts for signalling, a manual/automatic reset selector, test/reset/stop controls, and a trip flag indicator. The relay uses screw clamp terminals and connects directly to the bottom terminals of compatible LC1D09 to LC1D38 contactors, with optional separate DIN-rail or screw mounting using terminal block LAD7B106.
ABB TA25DU Thermal Overload Relay
₹851.00 – ₹937.00
Siemens 3RU2116-1HB0 Overload Relay
₹1,672.10 – ₹9,898.57
Schneider LRD10 Overload Relay
| Brand | : | Schneider Electric |
| Category | : | Thermal overload relays |
| Model Number | : | LRD10 |
| Manufacturer Part Number | : | LRD10 |
Dispatch within 10 days
₹1,279.00 – ₹8,188.42
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Output Current | 4–6 A |
|---|---|
| Output Voltage | 690 V AC (50/60 Hz) |
Environmental
| Operating Temperature Range | -20 °C to 60 °C without derating |
|---|
Physical
| Dimensions (L×W×H) | 66 × 45 × 70 mm |
|---|
