Schneider Electric LVS04171 is a Linergy BS copper busbar assembly with four threaded bars, rated at 160 A, intended for vertical installation in PrismaSeT power distribution systems. The official Schneider Electric information shows a 15 x 5 mm flat copper bar construction with 1400 mm length, M6 threaded-hole connection points at 25 mm intervals, rated insulation voltage of 1000 V, and high short-circuit withstand capability up to 100 kA rms for 1 second. It is designed for rear, lateral, or multi-staged installation and is suited for structured low-voltage panel busbar distribution.
Phoenix 1043193 WLAN Access Point
₹94,367.59 – ₹1,14,539.26
Socomec 45182402 Copper Busbar
₹11,255.17 – ₹25,280.11
Description
Specification
Communication
| Connector Type | M6 threaded hole connection, connection each 25 mm |
|---|
Power & Protection
| Protection Features | High short-circuit withstand capacity (Icw) up to 100 kA rms/1s |
|---|
Physical

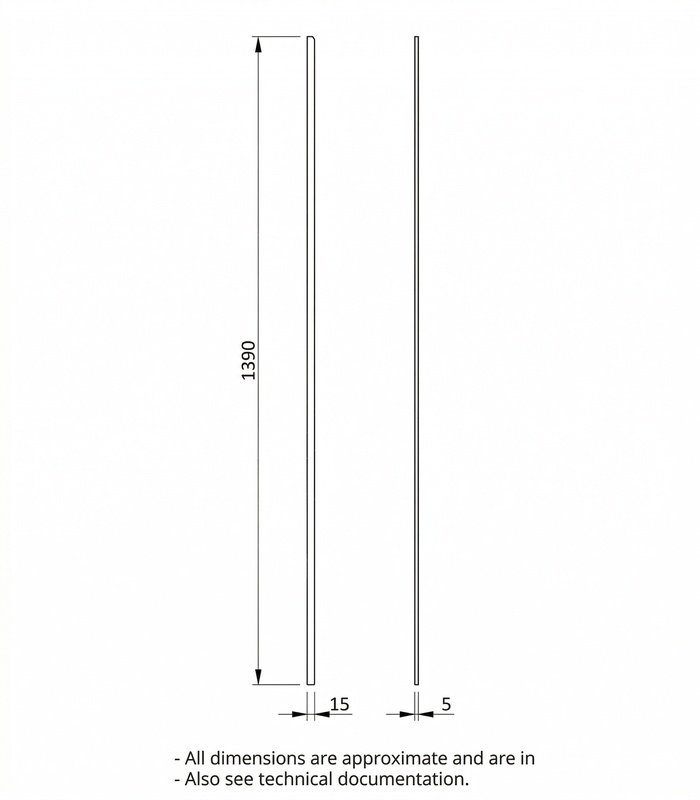

| Dimensions (L×W×H) | 1400 x 15 x 5 mm |
|---|
Safety / compliance
| Certifications / Standards | IEC 61439-1, IEC 61439-2, ASTA, Green Premium (RoHS/REACH) |
|---|
