RM35LM33MW (RM35L series) is a modular liquid level control relay for conductive liquids using resistive probes. It controls filling or draining by switching two C/O relay outputs (5 A, up to 250 V AC/DC), with adjustable sensitivity and an adjustable time delay (0.1…5 s) to avoid false switching from turbulence. It runs on a wide 24…240 V AC/DC supply and mounts on a 35 mm DIN rail, making it suitable for tank level control in water/process applications and general control panels.
Omron 61F-GP-N8 Level Switch
₹3,668.00 – ₹26,500.00
Siemens 3UG4501-2AW30 Level Monitoring Relay
₹10,005.56 – ₹30,143.12

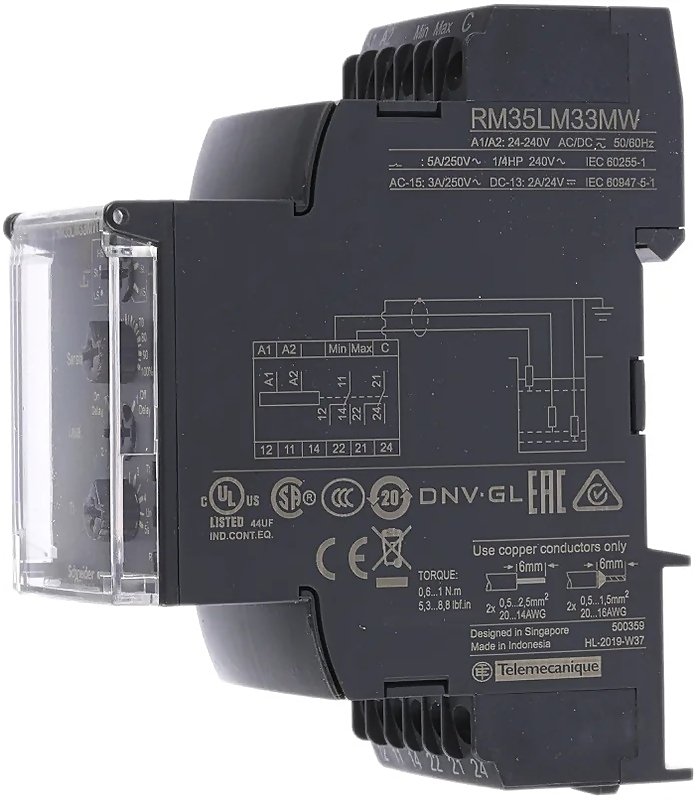

Schneider RM35LM33MW Level Control Relay
| Brand | : | Schneider Electric |
| Category | : | Conductive Level Controllers / relays |
| Model Number | : | RM35LM33MW |
| Manufacturer Part Number | : | RM35LM33MW |
Dispatch within 10 days
₹6,612.26 – ₹15,665.40
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Input Voltage | 24–240 V AC/DC (50/60 Hz ±10%), 20.4–264 V AC/DC |
|---|---|
| Output Current | 5 A |
| Output Voltage | 250 V AC/DC |
Environmental
| Operating Temperature Range | -20 °C to 50 °C |
|---|
