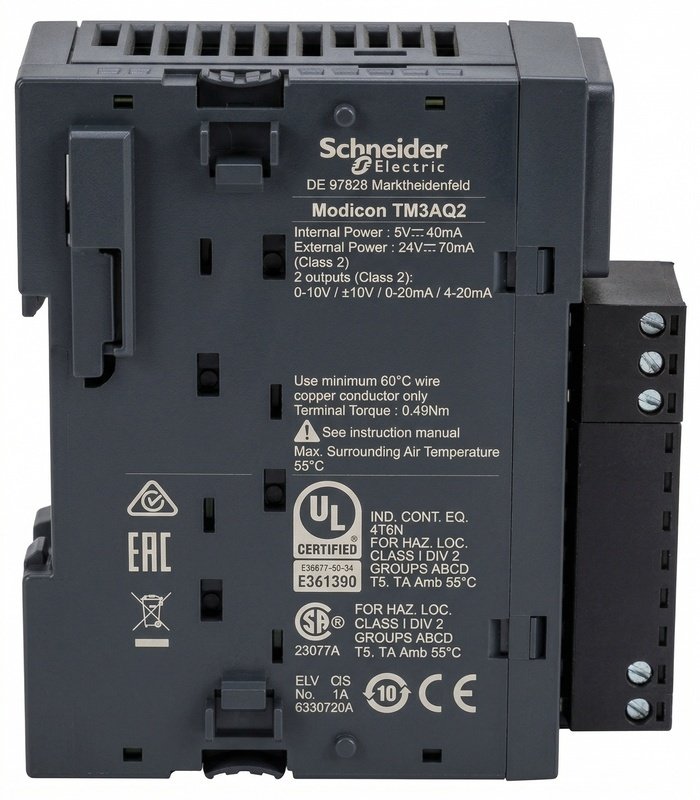

Schneider TM3AQ2 Analog Output Module

Schneider Electric TM3AQ2 is a Modicon TM3 analogue output expansion module providing 2 analogue output channels for Modicon M221/M241/M251/M262 controllers. It supports standard current and voltage outputs (0/4–20 mA and 0–10 V / ±10 V) with 11-bit + sign / 12-bit resolution, is supplied from 24 V DC, and uses removable screw terminals (5.08 mm pitch) for wiring. It is intended for control-cabinet use (IP20) and includes high insulation between output and supply (1500 V AC) and output and internal logic (500 V AC).
