Schneider Electric Modicon TM3XHSC202 is a TM3 expert high-speed counter expansion module (2-channel HSC) used for counting functions and position detection. It provides 10 fast 24 V DC inputs (up to 200 kHz) and 8 fast 24 V DC transistor outputs (source/push-pull) rated 300 mA, with overload/short-circuit protection and automatic reset. The module is powered by an external 24 V DC supply (-15…+20%), uses removable screw terminal blocks for wiring, and is designed for DIN-rail/panel installation in control cabinets (IP20 with protective cover).
Beckhoff EL2809 Digital Output Module
₹13,646.30 – ₹15,000.00
Beckhoff EL5101 Encoder Interface Module
₹5,000.00 – ₹26,212.96

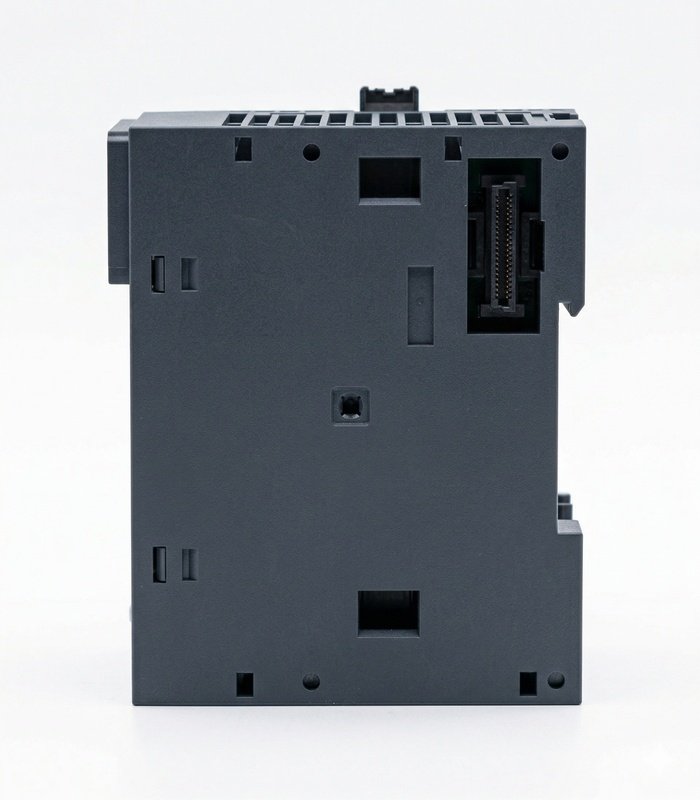

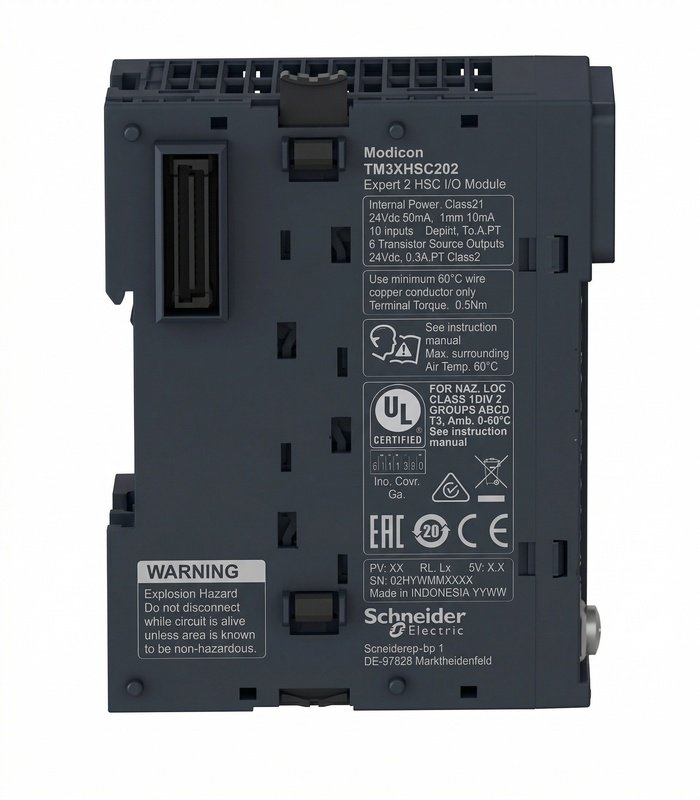

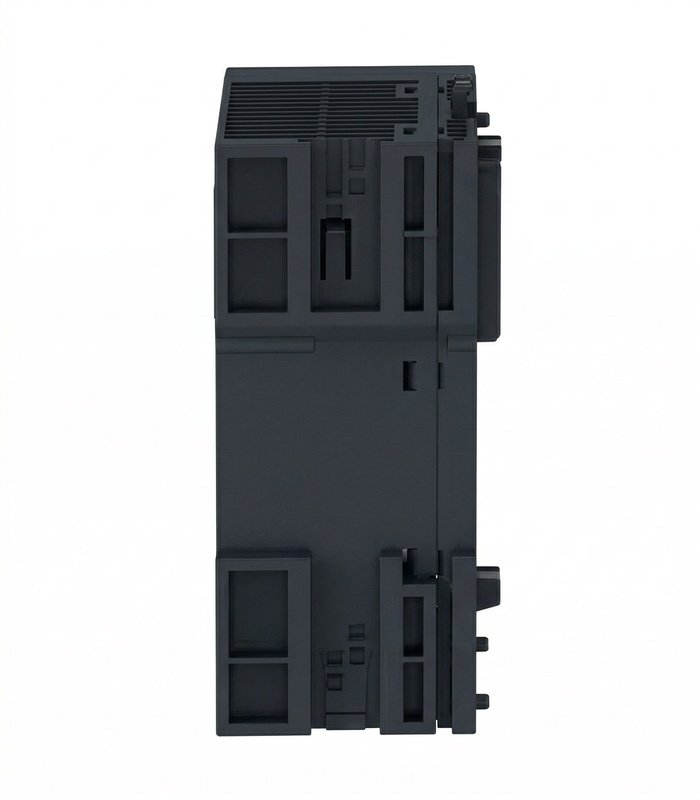

Schneider TM3XHSC202 High Speed Counter Module
| Brand | : | Schneider Electric |
| Category | : | High-speed counter / pulse modules |
| Model Number | : | TM3XHSC202 |
| Manufacturer Part Number | : | TM3XHSC202 |
Dispatch within 10 days
₹28,313.24 – ₹65,026.19
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Output Current | 300 mA (Q0–Q7) |
|---|---|
| Input Voltage | 24 V DC external supply (-15%/+20%) (20.4–28.8 V DC) |
I/O & Signal
| Number of Digital Outputs (DO) | 8 |
|---|---|
| Number of Digital Inputs (DI) | 10 |
