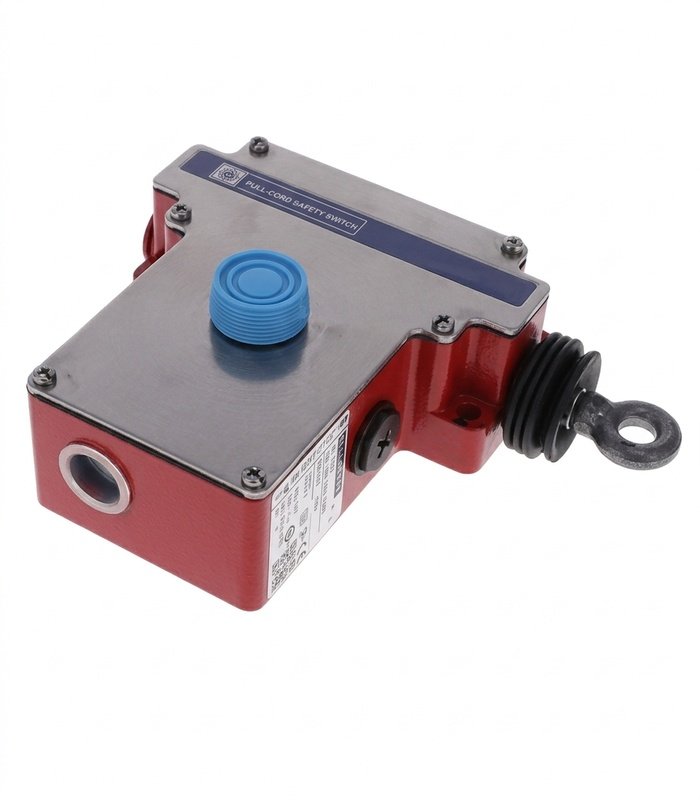

The Schneider Electric XY2CE1A250 is a latching emergency-stop rope pull switch in the Telemecanique XY2C range, designed so an operator can stop potentially dangerous machines from any point along the protected rope span. It uses a right-hand anchor configuration, supports a maximum rope length of 70 m, and features a Zamak body, stainless-steel cover, nitrile bellows, booted pushbutton reset, and 1 NC + 1 NO slow-break contacts. Official sources also highlight IP66 protection and compliance paths up to Category 4 / PL e / SIL 3 when used with the appropriate monitoring system and correct wiring.
Omron ER5018 Rope Pull Switch
₹23,061.93 – ₹29,028.76
Banner RP-LS42F Rope Pull Switch
₹38,990.56 – ₹40,347.42
Schneider XY2CE1A250 Rope Pull Switch
| Brand | : | Schneider Electric |
| Category | : | Rope pull switches |
| Model Number | : | XY2CE1A250 |
| Manufacturer Part Number | : | XY2CE1A250 |
Dispatch within 10 days
₹16,247.70 – ₹35,147.70
0
People watching this product now!
Description
Specification
Communication
| Connector Type | Screw clamp terminal, 1 x 0.5…2 x 1.5 mm² |
|---|
Power & Protection
| Protection Features | short-circuit protection 10 A cartridge fuse type gG, positive opening, IP66 |
|---|
Environmental
| Operating Temperature Range | -25 °C to 70 °C |
|---|
Safety / compliance
| Safety Category | Category 4, PL e, SIL 3 with appropriate monitoring system and correct wiring |
|---|
