SIMATIC ET 200SP IM 155-6 PN ST (6ES7155-6AU02-0BN0) is a PROFINET interface module for an ET 200SP station, supporting up to 32 ET 200SP I/O modules plus up to 16 ET 200AL modules. It supports multi hot swapping, includes PROFINET Security Class 1 features, and ships with the server module (6ES7193-6PA00-0AA0). Communication is via PROFINET (IO Device) with an integrated 2-port switch through a selectable BusAdapter (RJ45/FC/M12).
Phoenix AXL F BK ETH Bus Coupler
₹58,027.43 – ₹59,598.06
Advantech ADAM-4051-C DI Module
₹12,746.00 – ₹16,633.00

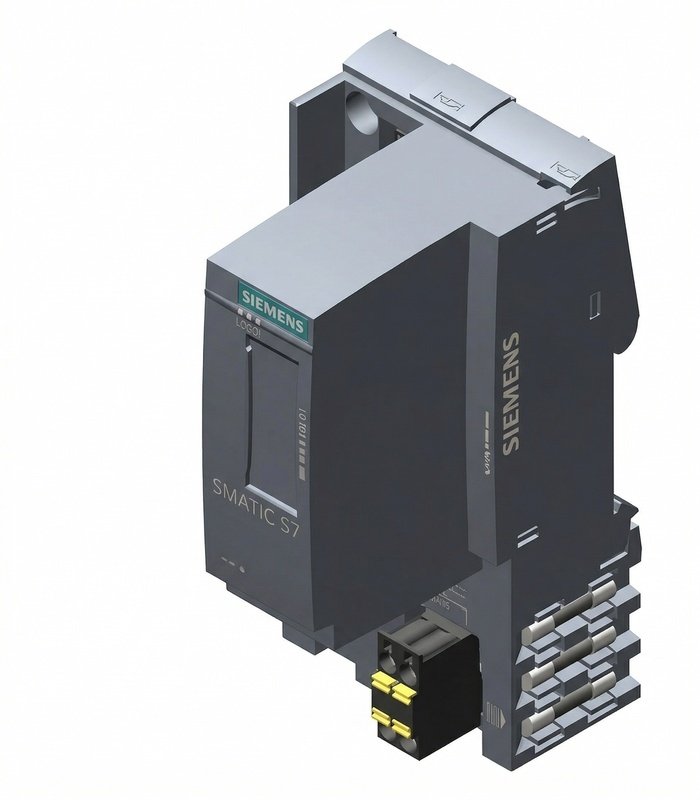

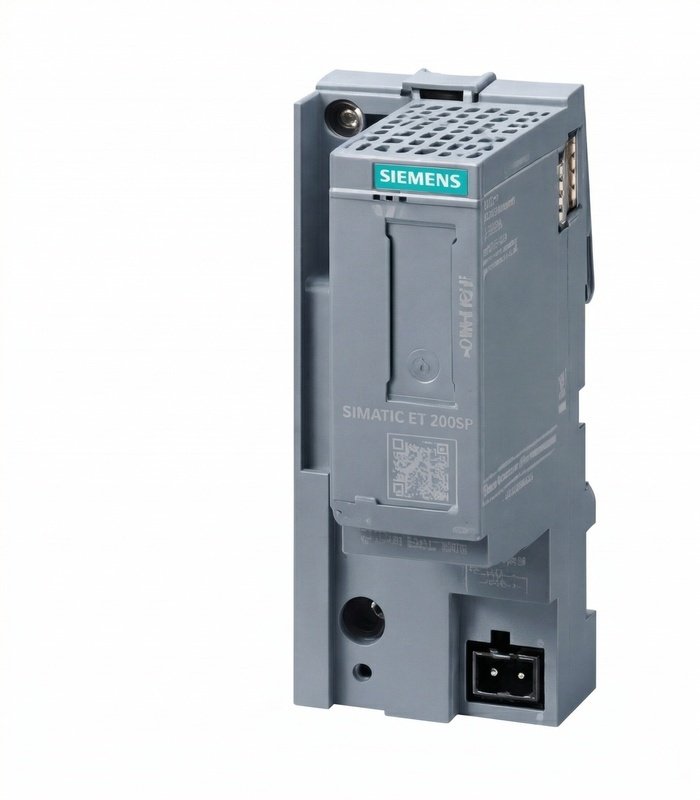

Siemens 6ES7155-6AU02-0BN0 ET200SP Interface Module
| Brand | : | Siemens |
| Category | : | Ethernet remote I/O |
| Model Number | : | 6ES7155-6AU02-0BN0 |
| Manufacturer Part Number | : | 6ES7155-6AU02-0BN0 |
Dispatch within 10 days
₹32,594.55 – ₹63,583.36
0
People watching this product now!
Description
Specification
Communication
| Supported Protocols / Ports | PROFINET IO Device, PROFIsafe, Open IE communication (TCP/IP, UDP, SNMP, LLDP, ARP, IGMP), IRT, PROFIenergy, Media redundancy: MRP/MRPD |
|---|
Power & Protection
| Power Supply Requirement | 24 V DC (SELV/PELV), 19.2–28.8 V DC |
|---|
Environmental
| Operating Temperature Range | -30 °C to +60 °C (horizontal), -30 °C to +50 °C (vertical), no condensation |
|---|
Physical

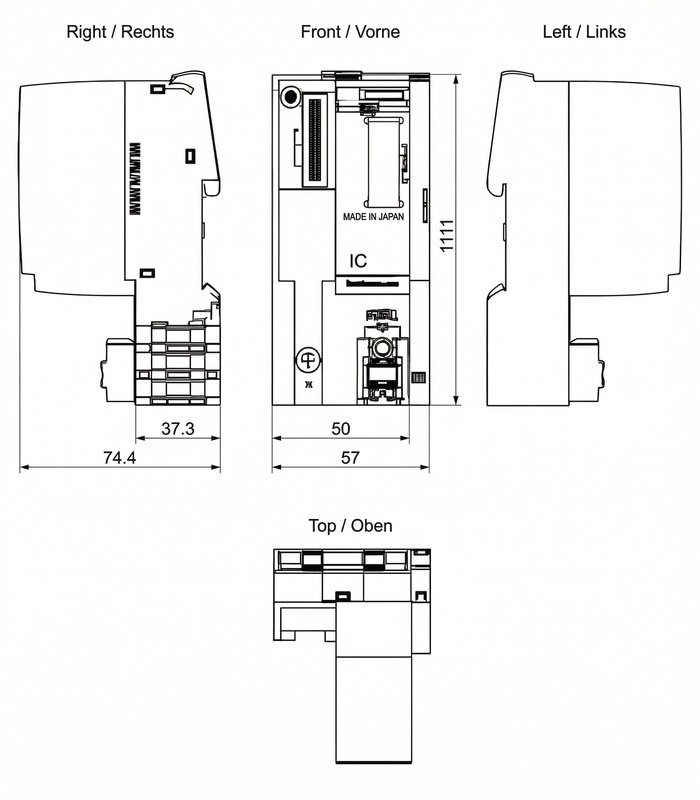

| Dimensions (L×W×H) | 50 mm × 117 mm × 74 mm |
|---|
