Siemens SENTRON PAC3200 (7KM2112-0BA00-3AA0) is a compact 96×96 mm panel-mount power monitoring device used in switchboards to measure and display key electrical parameters and energy. It supports a wide auxiliary supply range and offers Ethernet-based communication (with Modbus TCP standard, and optional fieldbus modules) so the meter data can be integrated into PLC/SCADA or energy management systems.

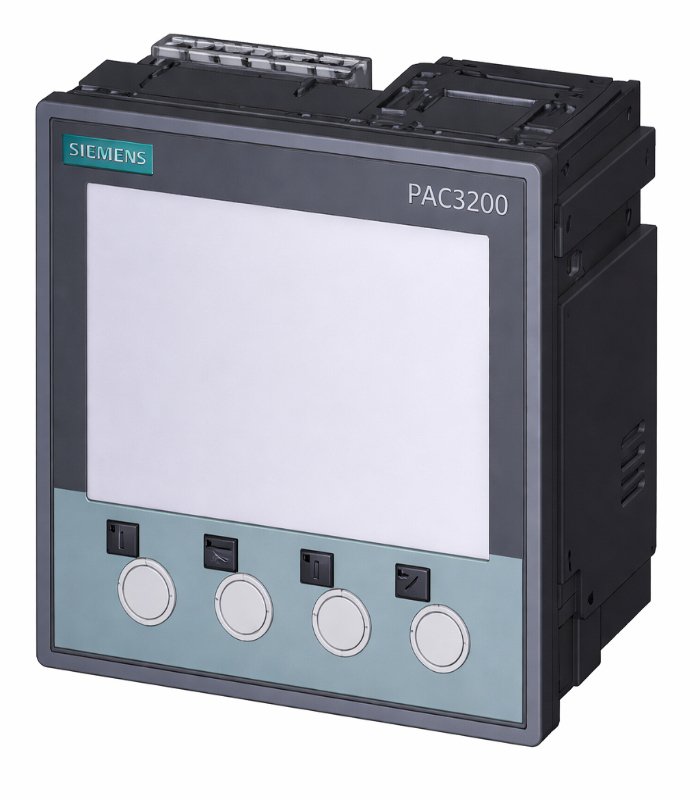

Siemens SENTRON PAC3200 Power Monitoring Device (Panel-Mount, LCD 96×96 mm, Screw Terminals)
| Brand | : | Siemens |
| Category | : | Multifunction power meters |
| Model Number | : | 7KM2112-0BA00-3AA0 |
| Manufacturer Part Number | : | 7KM2112-0BA00-3AA0 |
Dispatch within 10 days
15
People watching this product now!
Description
Specification
Electrical Input/Output
| Input Voltage |
45/60 Hz) or 110–340 V DC (±10%) ,95–240 V AC (±10% |
|---|
Communication
| Supported Protocols / Ports |
Modbus TCP (standard), optional Modbus RTU / PROFINET / PROFIBUS |
|---|
Physical

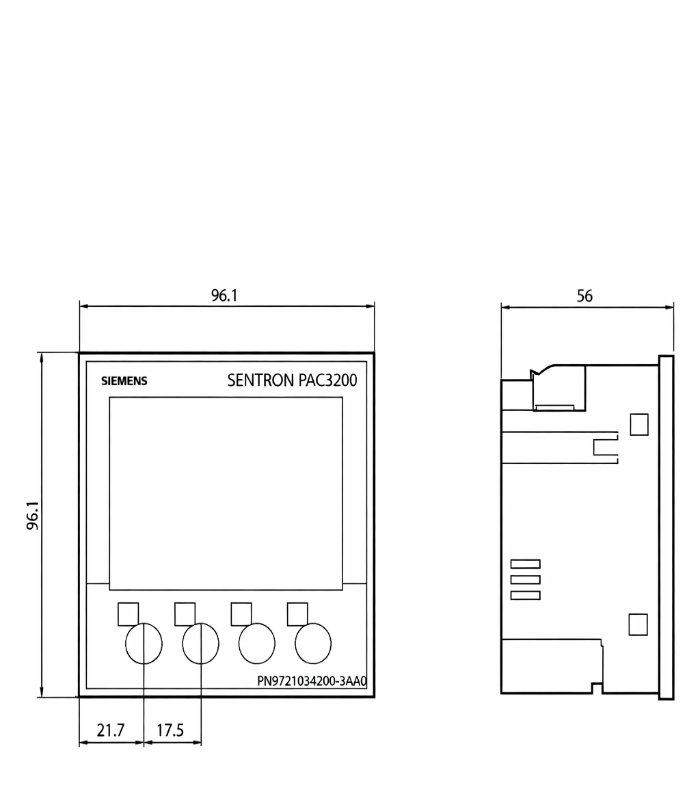

| Dimensions (L×W×H) |
96 × 96 × 56 mm |
|---|
Display / HMI / Vision Specifics
| Screen Size & Resolution |
LCD, display area 72 × 54 mm |
|---|
Contact us for Data Sheet
