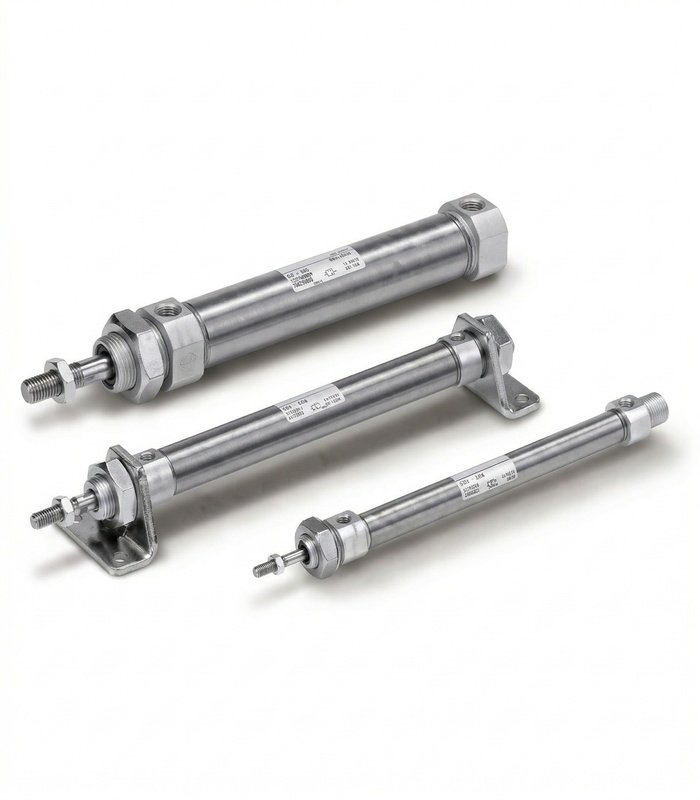

CD85N16-125-B is a C85 series ISO 6432 pneumatic cylinder with double-acting, single-rod operation, a 16 mm bore, and 125 mm stroke. This exact configuration includes a built-in magnet, basic integrated-clevis head cover, standard rubber bumper cushioning, and band-mount auto-switch style without an auto switch fitted. The official C85 catalog lists the built-in-magnet temperature range as -10 to 60°C, and the construction includes a stainless-steel cylinder tube and piston rod, aluminum-alloy covers, NBR seals, and a urethane bumper
Festo ADN-32-10 Compact Cylinder
₹3,090.00 – ₹6,603.95
Festo DSBC-32-50 ISO Cylinder
₹4,000.00 – ₹10,568.69
Description
Specification
Control / Performance
| Control Mode | Double acting, single rod |
|---|
Mechanical ratings
| Stroke (mm) | 125 |
|---|
Environmental
| Operating Temperature Range | -10 °C to 60 °C |
|---|
Commercial Basics
| Variant / Series | C85 Series |
|---|
Contact us for Data Sheet
