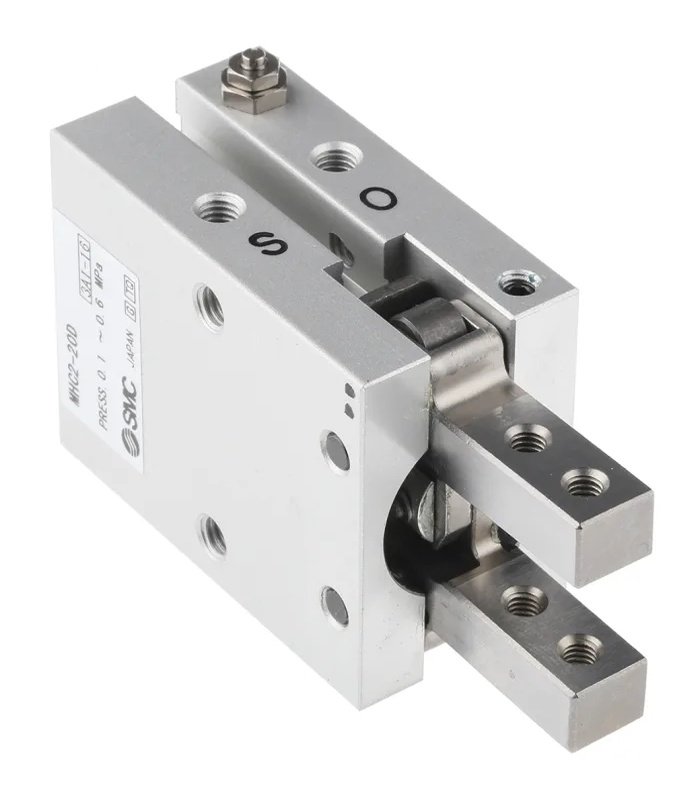

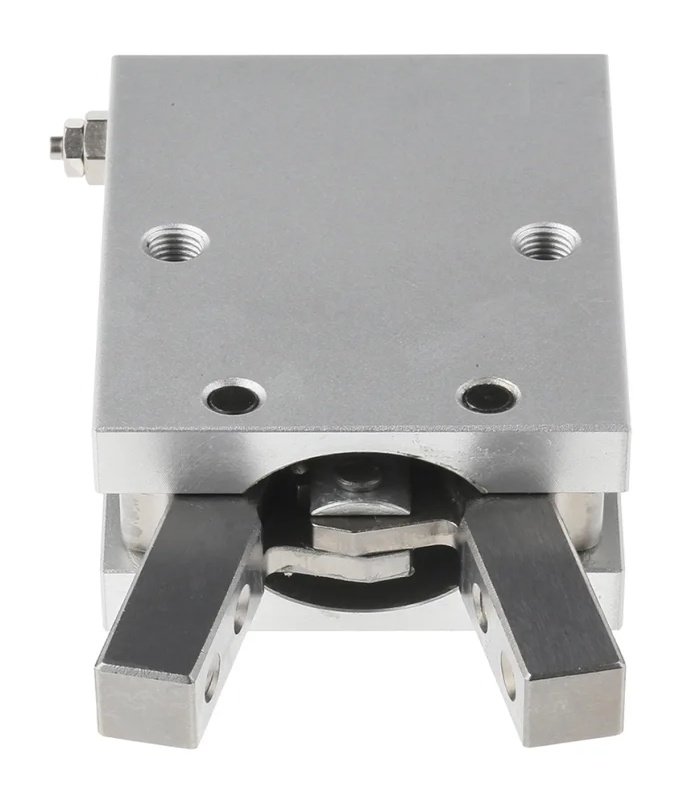

SMC MHC2-20D is a compact 2-finger angular air gripper with double-acting operation and a 20 mm bore. It is designed for gripping odd-shaped workpieces where a parallel gripper may not fit, and it provides a 30° to -10° finger opening range, built-in speed adjustment, repeatability of ±0.01 mm, and a maximum operating frequency of 180 cycles per minute.
Zimmer GPW5008NC Angular Gripper
₹68,636.00 – ₹1,54,236.00
Festo DHWC-16 Angle Gripper
₹18,950.00 – ₹36,420.00
Description
Specification
Electrical Input/Output
| Power | Air |
|---|
Control / Performance
| Accuracy / Repeatability / Resolution | ±0.01 mm |
|---|
Mechanical ratings
| Torque (Nm) | 1.36 N·m at 0.5 MPa |
|---|
Environmental
| Operating Temperature Range | -10 °C to 60 °C |
|---|
