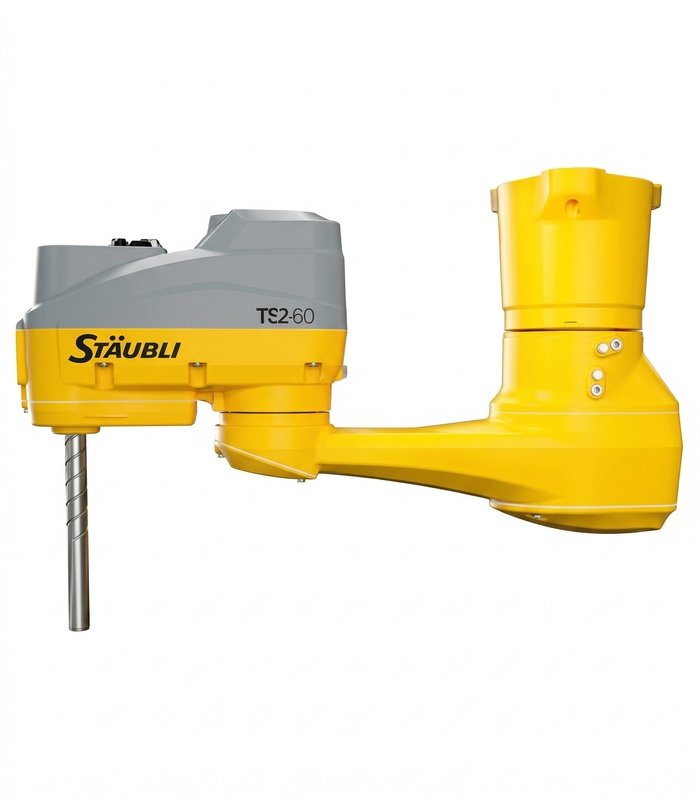

The Stäubli TS2-60 SCARA industrial robot is a 4-axis robot designed for fast automation, combining 620 mm reach, 8.4 kg payload, and high repeatability for assembly, packaging, inspection, and electronics manufacturing. Stäubli highlights its fully encapsulated IP65 architecture, compact cylindrical work envelope, floor or ceiling mounting flexibility, integrated electrical and pneumatic user circuits including Cat5e to the end of the arm, and suitability for sensitive environments such as hygienic, pharmaceutical, and ESD applications.
Yamaha YK400XE-4 SCARA Robot
₹4,50,000.00 – ₹9,50,000.00
Omron i4-650H SCARA Robot
₹29,60,046.99 – ₹36,40,188.44
Description
Specification
Control / Performance
| Accuracy / Repeatability / Resolution | Repeatability X-Y ±0.01 mm, Z ±0.004 mm, R-Z ±0.002° |
|---|
Mechanical ratings
| Max Load (N/kg) | 8.4 kg |
|---|
Power & Protection
| Protection Features | Up to IP65 with ball screw cover and bellows |
|---|
Environmental
| Operating Temperature Range | +5 °C to +40 °C |
|---|
