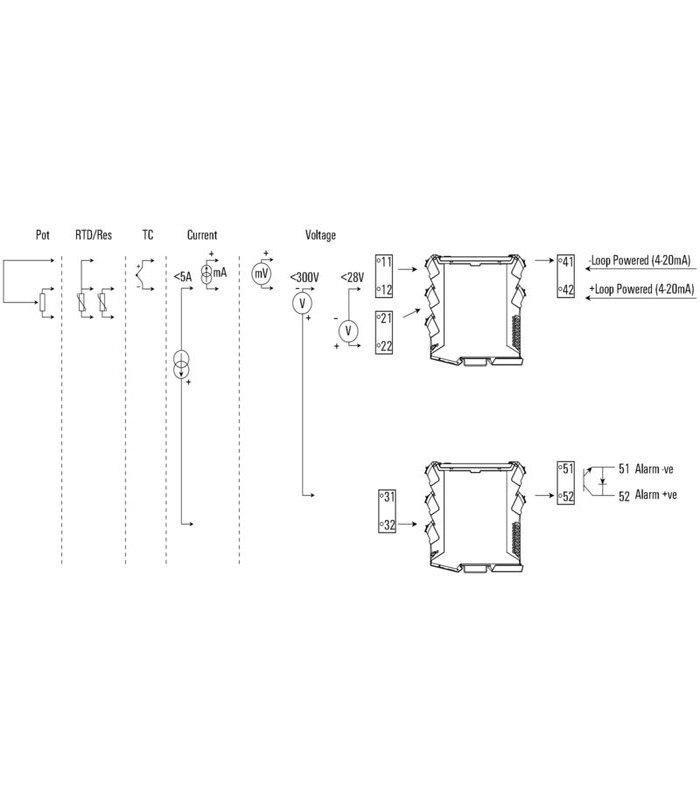

ACT20P-UI-AO-DO-LP is a universal, loop-powered signal converter/isolator with limit value monitoring. It converts and electrically isolates current, voltage, potentiometer, RTD and thermocouple signals, and outputs a passive 4–20 mA loop signal (connected control must be active) plus a transistor open-collector alarm output. The transfer function can be set to predefined scaling (x0.5/x/x2) or a user-defined function table using WI-Manager (FDT/DTM) via the CBX200 USB configuration adapter.
Phoenix 2902052 RTD Transducer
₹19,329.66 – ₹21,953.36
PR Electronics 5337A Temperature Transmitter
₹41,540.27 – ₹55,179.32
Weidmuller ACT20P-UI-AO-DO Signal Converter
| Brand | : | Weidmüller |
| Category | : | RTD/TC to current voltage |
| Model Number | : | ACT20P-UI-AO-DO-LP (1453210000) |
| Manufacturer Part Number | : | 1453210000 |
Dispatch within 10 days
₹34,807.57 – ₹52,860.98
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Power | 10–45 V |
|---|---|
| Output Current | 4–20 mA (current loop) |
Environmental
| Operating Temperature Range | -20 °C to 60 °C |
|---|
Physical

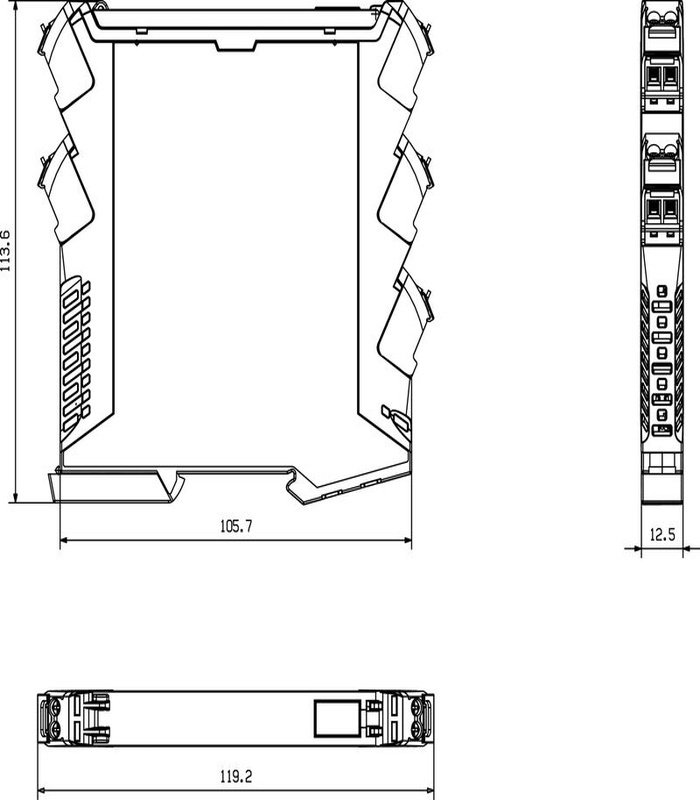

| Dimensions (L×W×H) | 113.6 × 12.5 × 119.2 mm (D×W×H) |
|---|
