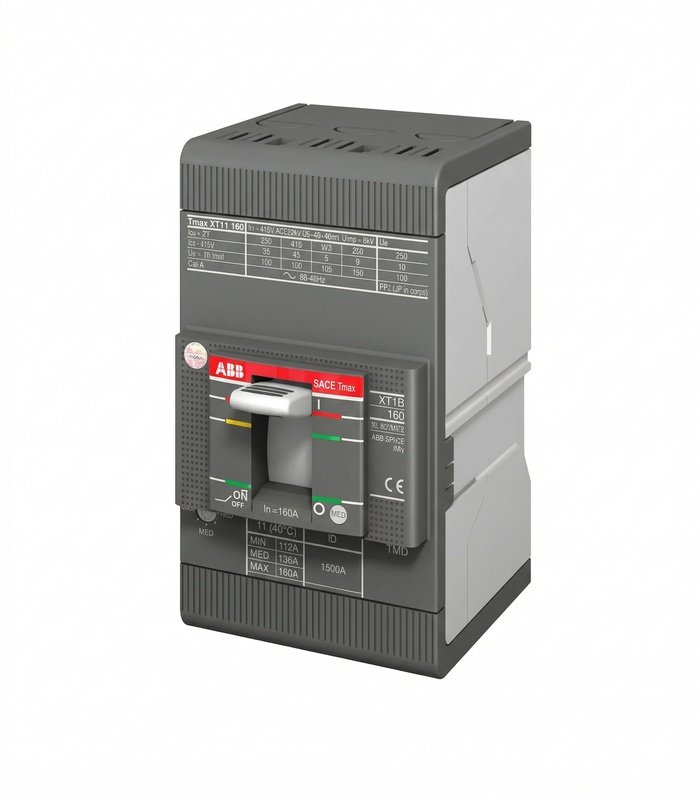

ABB 1SDA066807R1 is a SACE Tmax XT1B 3-pole molded case circuit breaker with fixed front terminals and a thermomagnetic TMD release. It is rated 100 A, supports up to 690 V AC / 500 V DC, and provides overload and short-circuit protection with a 70…100 A overload setting range and 1000 A instantaneous trip setting.
Siemens 3VA1110-4ED32 MCCB
₹43,456.10 – ₹1,78,227.88
Hager CDA225D 25A RCCB
₹3,956.02 – ₹5,879.92
Description
Specification
Electrical Input/Output
| Output Current | 100 A |
|---|
Power & Protection
| Protection Features | Thermomagnetic release TMD, overload setting 70…100 A, short-circuit setting Ii 1000 A |
|---|
Safety / compliance
| Voltage Class | Ui 800 V, Uimp 8 kV, Ur 690 V, rated operational voltage 690 V AC / 500 V DC |
|---|
Commercial Basics
| Variant / Series | SACE Tmax XT, XT1 |
|---|
Contact us for Data Sheet
