Autonics BC15-LDT-C (BC Series) is a compact color mark sensor with 15 mm sensing distance (±2 mm) and 500 μs response time. It uses an NPN open-collector output with an external SET input, M12 connector, 12–24 V DC supply, IP67 protection, and operates from -10 to 55 °C in a 16×49.2×28 mm polycarbonate housing (SUS304 bracket).
SICK Ranger3 V3DR3 3D Vision Sensor
₹13,46,215.71 – ₹16,29,885.81
SICK KTS Contrast Sensor
₹5,800.00 – ₹51,218.84

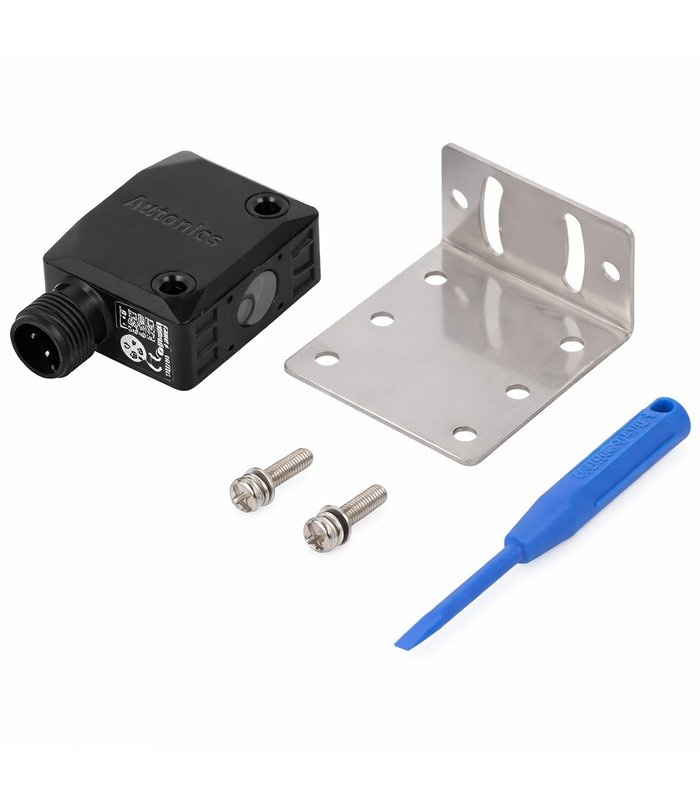

Autonics BC15-LDT-C Color Mark Sensor
| Brand | : | Autonics |
| Category | : | Color / mark detection sensors |
| Model Number | : | BC15-LDT-C |
| Manufacturer Part Number | : | BC15-LDT-C |
Dispatch within 10 days
₹13,891.00 – ₹29,826.00
0
People watching this product now!
Description
Specification
Communication
| Connector Type | M12 |
|---|
Power & Protection
| Power Supply Requirement | 12–24 V DC ±10% (ripple P-P max 10%) |
|---|
Environmental
| Operating Temperature Range | -10 °C to +55 °C (storage: -25 °C to 75 °C) |
|---|
Physical
| Dimensions (L×W×H) | 16 × 49.2 × 28 mm |
|---|
