KEYENCE LK-G152 (LK-G3000 series) is a long-distance, small-spot CCD laser displacement sensor head for high-accuracy measurement. It supports diffused and specular reflection, with a reference distance of 150 mm (diffused) and a spot diameter of approx. Ø120 µm. It specifies repeatability of 0.5 µm and ±0.05% F.S. linearity over a ±40 mm measuring range, operates from 0 to +50 °C, and meets Class 2/II laser safety with an IP67-rated aluminum die-cast body.
SICK OD1-B015C05I14 Displacement Sensor
₹64,961.93 – ₹1,42,607.79
Optris CS LT Pyrometer
₹57,816.00 – ₹59,825.00

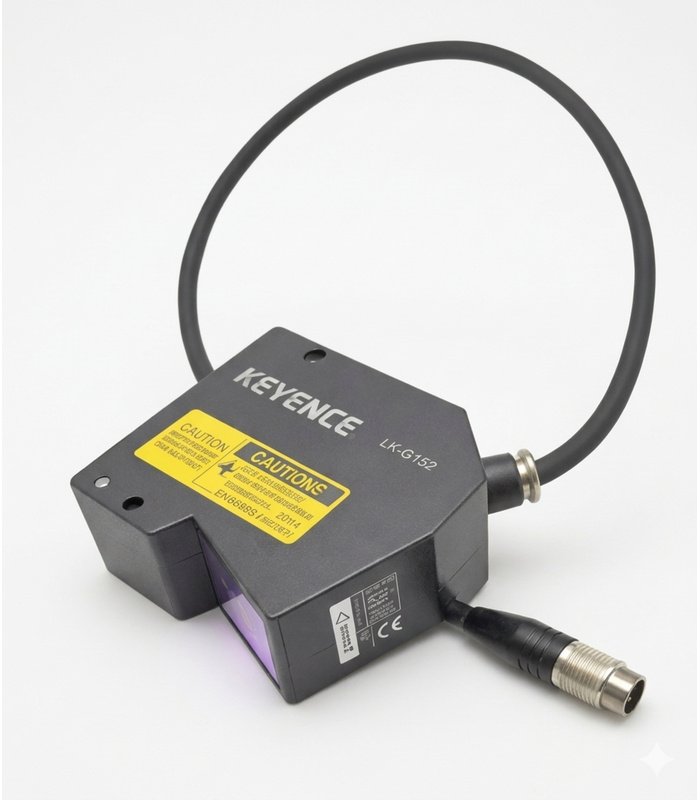

Keyence LK-G152 Laser Displacement Sensor
| Brand | : | KEYENCE |
| Category | : | Laser displacement sensors |
| Model Number | : | LK-G152 |
| Manufacturer Part Number | : | LK-G152 |
Dispatch within 10 days
₹1,63,935.00 – ₹4,62,865.00
0
People watching this product now!
Description
Specification
Control / Performance
| Control Mode | Diffused reflection, Specular reflection |
|---|---|
| Accuracy / Repeatability / Resolution |
Environmental
| Operating Temperature Range | 0 °C to +50 °C |
|---|
Safety / compliance
| Certifications / Standards | Laser class II (FDA, IEC60825-1); IP67 |
|---|
Contact us for Data Sheet
