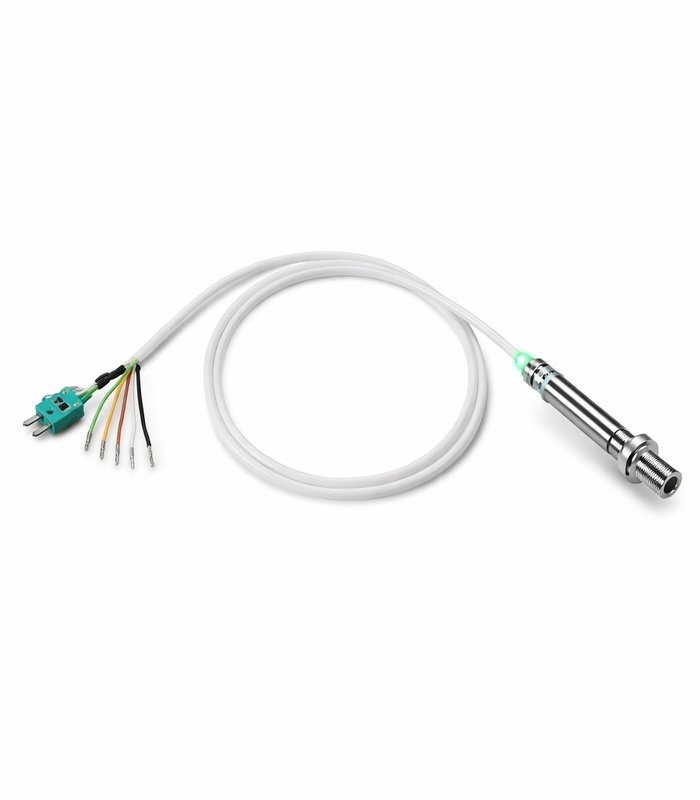

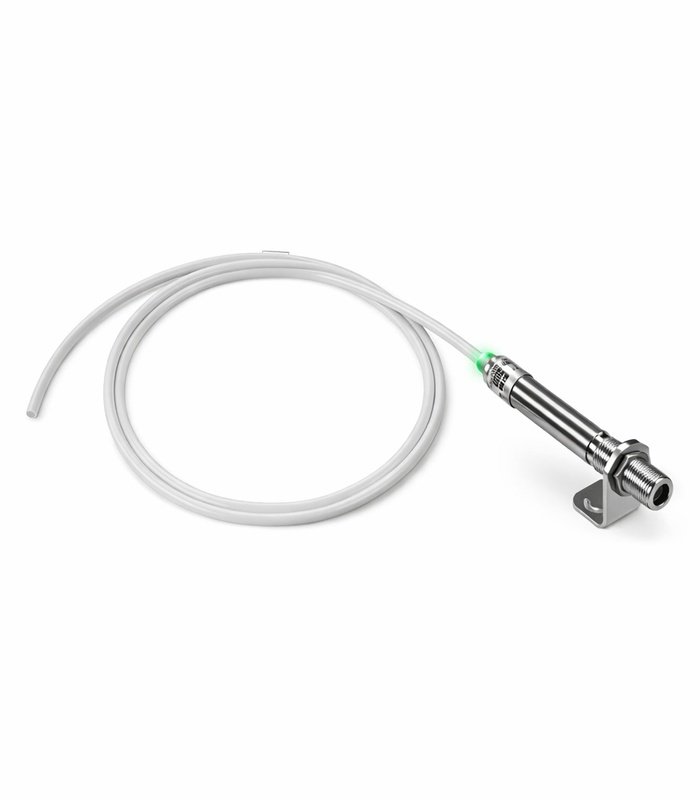

Optris CS LT (CS series) is a compact OEM infrared thermometer (pyrometer) for non-contact temperature measurement. It operates on 5–30 V DC, provides selectable analog output (0–5 V or 0–10 V, freely scalable) and supports fast measurement with 14 ms response time. It specifies system accuracy of ±1.5% or ±1.5 °C, repeatability of ±0.75% or ±0.75 °C, and works from –20 °C to 80 °C in a stainless-steel M12-form-factor housing.
Keyence LK-G152 Laser Displacement Sensor
₹1,63,935.00 – ₹4,62,865.00
Raytek MI3 Pyrometer
₹39,960.00 – ₹72,143.00
Description
Specification
Electrical Input/Output
| Output Voltage | Selectable: 0–5 V or 0–10 V (free scalable) |
|---|---|
| Input Voltage | 5–30 V DC |
Control / Performance
| Accuracy / Repeatability / Resolution | System accuracy ±1.5% or ±1.5 °C, repeatability ±0.75% or ±0.75 °C, NETD 50 mK, response time (90%) 14 ms |
|---|
Environmental
| Operating Temperature Range | -20 °C to 80 °C |
|---|
