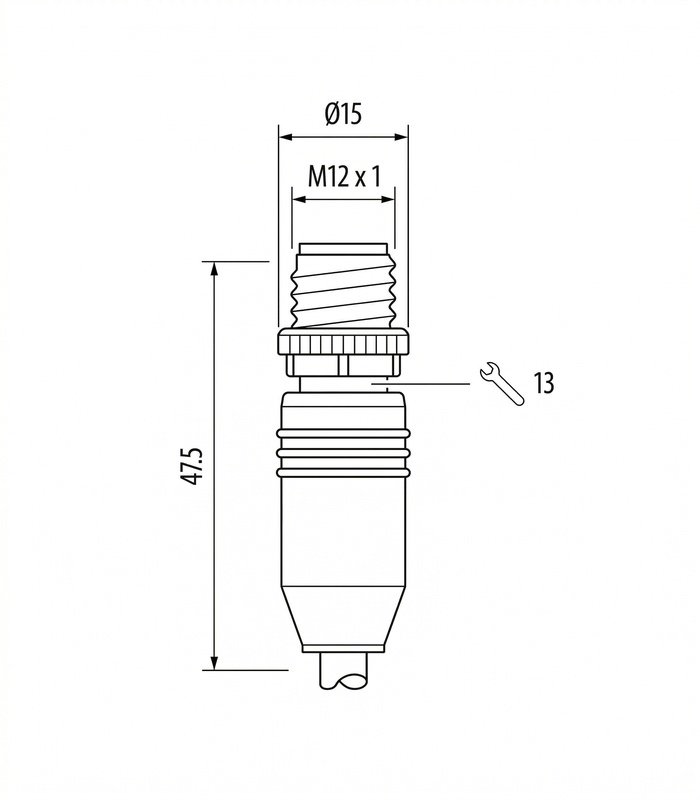

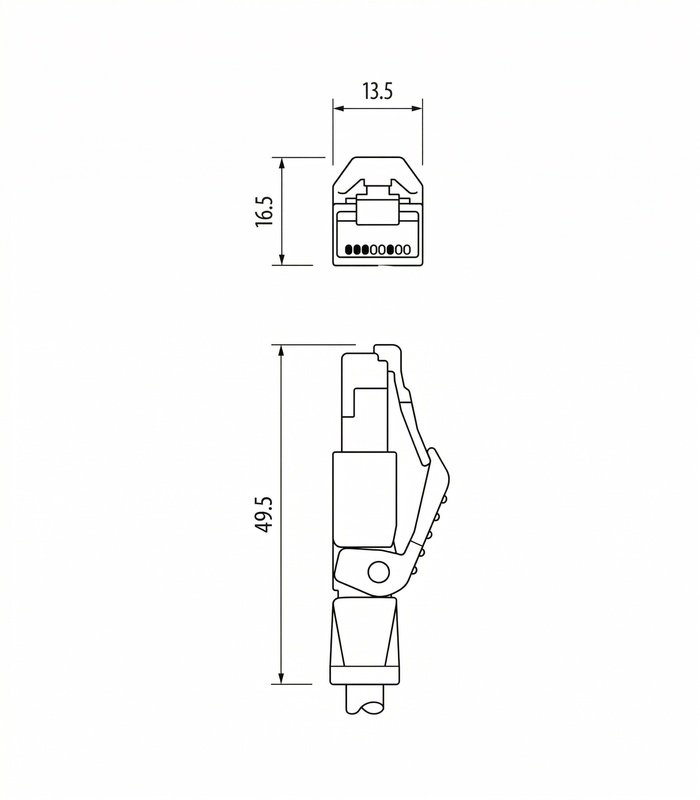

Murrelektronik 7000-44711-7940500 is a shielded industrial Ethernet CAT5 data cordset with a straight M12 D-coded male connector on one end and a straight RJ45 male connector on the other. The official Murrelektronik product PDF specifies a 5 m PUR cable, 4-pole construction, 60 V DC maximum operating voltage, 1.5 A per-contact current rating, and enhanced ingress protection on the M12 side up to IP67/IP66K/IP65. Its PUR cable jacket, gold-plated contacts, and chemical- and oil-resistant housing materials make it suitable for robust industrial Ethernet connections.
Phoenix 1407501 M12 Ethernet Cable
₹3,850.89 – ₹5,775.52
StarTech N6PATCH4YL CAT6 Ethernet Cable
₹1,211.35 – ₹1,496.76
Murrelektronik 7000-44711 M12 RJ45 Cable
| Brand | : | Murrelektronik |
| Category | : | Industrial Ethernet cordsets |
| Model Number | : | 7000-44711-7940500 |
| Manufacturer Part Number | : | 7000-44711-7940500 |
Dispatch within 10 days
₹3,906.44 – ₹4,464.88
0
People watching this product now!
Description
Specification
Communication
| Connector Type | M12 male straight, 4-pole, D-coded or RJ45 male straight, 4-pole |
|---|
Power & Protection
| Protection Features | Shielded, IP67/IP66K/IP65 (M12 side), IP20 (RJ45 side), pollution degree 3, rated surge voltage 1 kV |
|---|
Environmental
| Operating Temperature Range | Connector: -30 °C to 85 °C, cable static: -40 °C to 80 °C, cable dynamic: -20 °C to 60 °C |
|---|
Physical
| Enclosure / Material | PUR body/cable, copper alloy gold-plated contacts, zinc die-cast nickel-plated screw connection, PA locking material, PE wire insulation |
|---|
Contact us for Data Sheet
