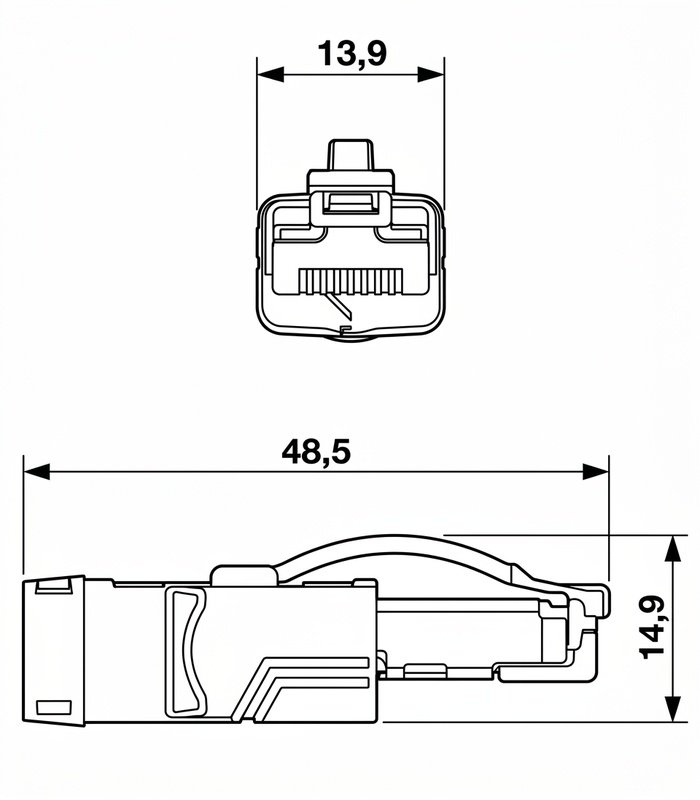

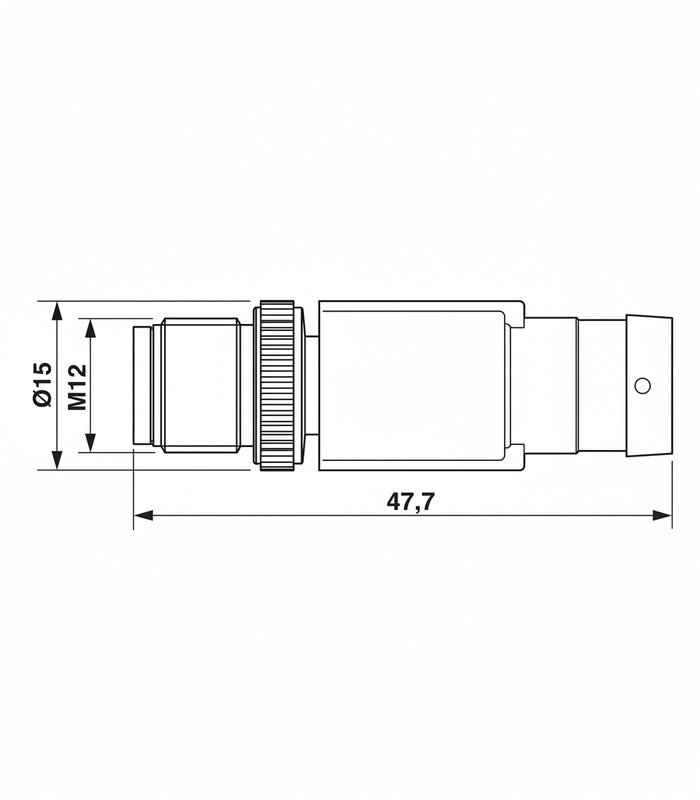

Phoenix Contact NBC-M12MSD/ 5,0-93B/R4AC is a preassembled industrial Ethernet network cable for PROFINET and EtherCAT communication at 100 Mbps. It combines a straight shielded M12 D-coded plug on one side and a straight shielded RJ45 plug on the other, using a green CAT5 PVC cable with Advanced Shielding Technology. The official data highlights 5 m cable length, 4-position construction, IP65/IP67 protection on the M12 side, IP20 on the RJ45 side, and resistance features suited for industrial machine and cabinet networking.
Belden 9841 RS485 Cable
₹2,53,031.66 – ₹3,66,023.20
Murrelektronik 7000-44711 M12 RJ45 Cable
₹3,906.44 – ₹4,464.88
Phoenix 1407501 M12 Ethernet Cable
| Brand | : | Phoenix Contact |
| Category | : | Industrial Ethernet cordsets |
| Model Number | : | 1407501 |
| Manufacturer Part Number | : | 1407501 |
Dispatch within 10 days
₹3,850.89 – ₹5,775.52
0
People watching this product now!
Description
Specification
Communication
| Connector Type | M12 male straight, 4-position, D-coded, shielded or RJ45 straight, shielded |
|---|---|
| Supported Protocols / Ports | PROFINET, EtherCAT |
Power & Protection
| Protection Features | Shielded, IP65/IP67 (M12), IP20 (RJ45), Advanced Shielding Technology, oil-resistant, UV resistant |
|---|
Environmental
| Operating Temperature Range | -40 °C to 80 °C fixed cable, -10 °C to 70 °C flexible cable, M12 -25 °C to 85 °C, RJ45 -25 °C to 80 °C |
|---|
Contact us for Data Sheet
