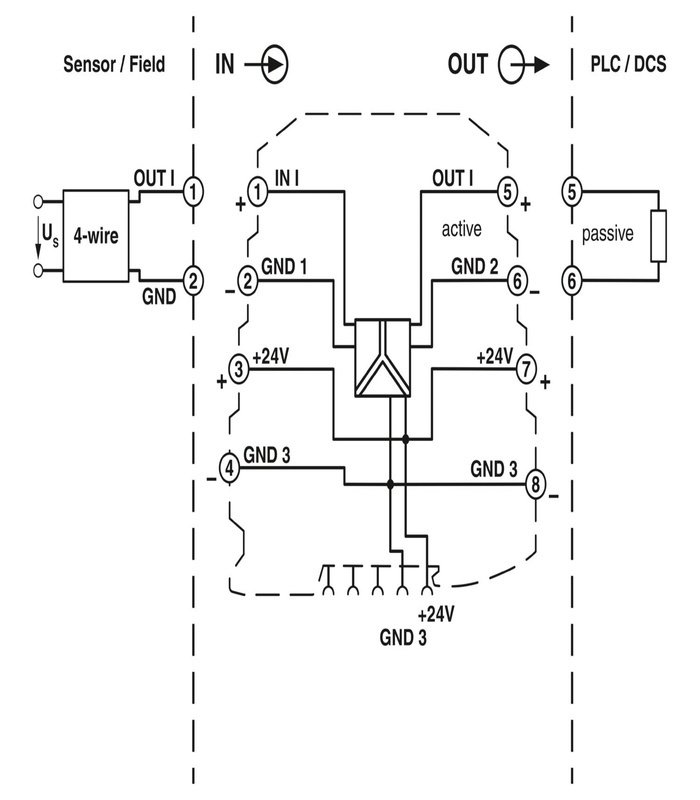

Phoenix Contact MINI MCR-SL-I-I (2864406) is a 6.2-mm slim, 3-way isolating amplifier for current signals. It electrically isolates, amplifies, and filters standard 0…20 mA / 4…20 mA signals with “In = Out” behavior across one channel, and uses screw terminals for DIN-rail mounting. It operates from a 24 V DC supply (19.2…30 V DC), provides 1.5 kV AC test isolation, and is rated for -20…+65 °C in IP20 industrial indoor installations.
Moxa TCC-120I RS485 Converter
₹12,000.00 – ₹28,447.56
Weidmuller 1176070000 Signal Isolator
₹18,085.88 – ₹18,866.46
Phoenix 2864406 Signal Conditioner
| Brand | : | Phoenix Contact |
| Category | : | Signal Isolators (analog / digital) |
| Model Number | : | 2864406 |
| Manufacturer Part Number | : | 2864406 |
Dispatch within 10 days
₹20,090.81 – ₹26,773.22
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Power | 24 V DC |
|---|
I/O & Signal
| Signal Type | 0 mA to 20 mA, 4 mA to 20 mA (input/output) |
|---|
Physical

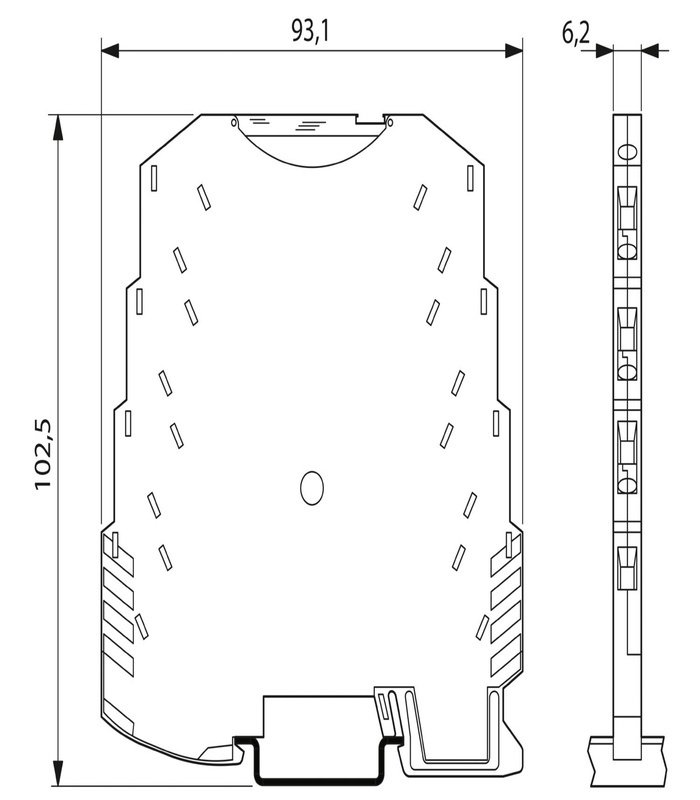

| Dimensions (L×W×H) | 6.2 mm × 93.1 mm × 101.2 mm |
|---|
Safety / compliance
| Isolation Rating | Test voltage 1.5 kV AC (50 Hz, 60 s), 3-way isolation |
|---|
