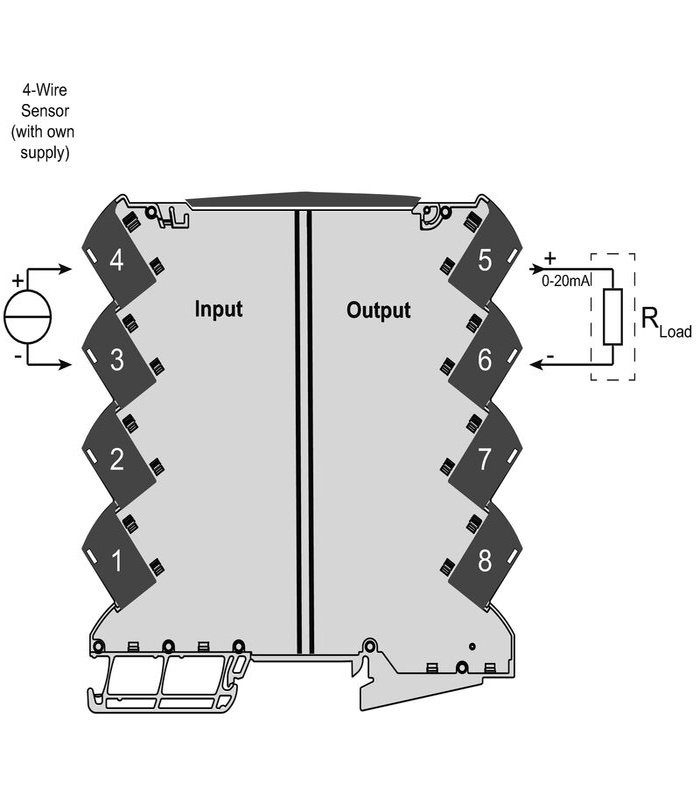

Weidmüller ACT20M-CI-CO-ILP-S (1176070000) is a slim 6.1 mm passive isolator for standard analog current loops. It takes a 0(4)…20 mA input and provides a galvanically isolated 0(4)…20 mA output (active output, connected control must be passive). The module is loop-powered via the 4…20 mA input, achieves <0.1% accuracy of measuring range, supports load impedance ≤600 Ω (@ max 23 mA), and provides 2-way isolation with 2.5 kVeff/1 min test voltage. DIN-rail (TS35) mounting, IP20, and -25…+70 °C operating range.
Phoenix 2864406 Signal Conditioner
₹20,090.81 – ₹26,773.22
Pepperl+Fuchs KFD2-STC4-Ex1 Signal Conditioner
₹8,810.16 – ₹16,000.00
Weidmuller 1176070000 Signal Isolator
| Brand | : | Weidmüller |
| Category | : | Signal Isolators (analog / digital) |
| Model Number | : | 1176070000 |
| Manufacturer Part Number | : | 1176070000 |
Dispatch within 10 days
₹18,085.88 – ₹18,866.46
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Power | Loop powered, via 4–20 mA input |
|---|
Environmental
| Operating Temperature Range | -25 °C to 70 °C |
|---|
Physical

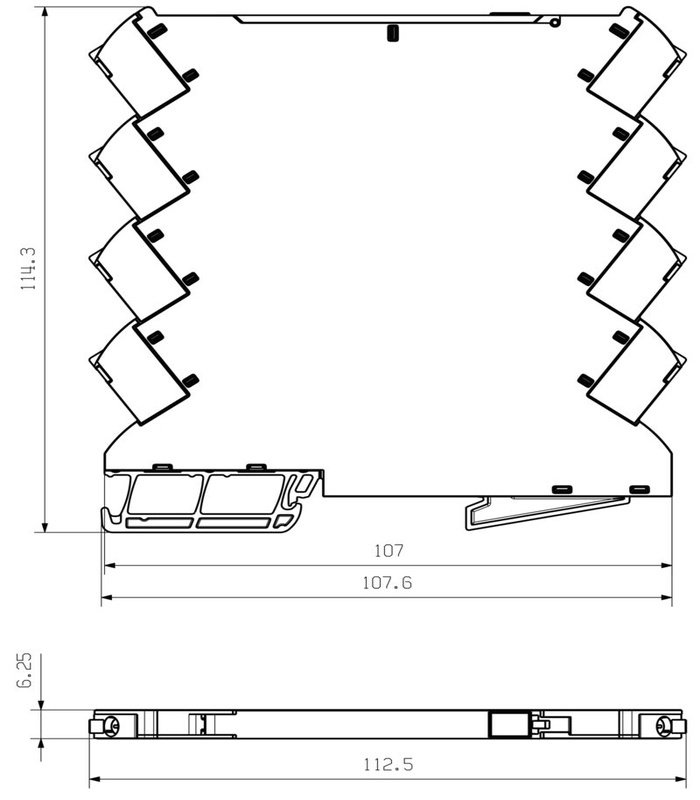

| Dimensions (L×W×H) | 114.3 mm × 6.1 mm × 112.5 mm |
|---|
Safety / compliance
| Isolation Rating | Insulation voltage: 2.5 kVeff / 1 min (2-way isolator) |
|---|
