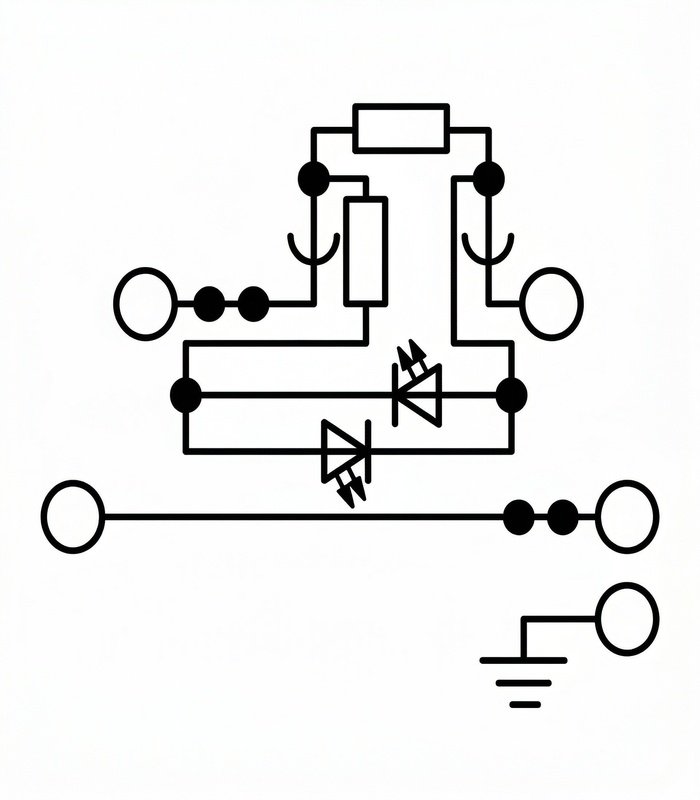

Phoenix Contact UT 4-PE/L/HESILED 60 (5X20) is a 3-level fuse modular terminal block for 5 × 20 mm glass or ceramic fuses with screw connection and grounding foot. The official page shows 4 mm² rated cross-section, 6.3 A fused-level nominal current, 60 V nominal voltage, LED range 30 to 60 V AC, and dimensions of 94.5 × 6.2 × 92.7 mm. It is a black PA terminal in the UT family with EN 50155 vibration/shock test compliance and hazardous-area approvals including IECEx and ATEX.
WAGO 281-611 Fuse Terminal Block
₹777.24 – ₹1,859.00
Weidmuller 1763940000 Fuse Terminal Block
₹571.10 – ₹1,234.59
Phoenix 3214322 Fuse Terminal Block
| Brand | : | Phoenix Contact |
| Category | : | Fuse / disconnect terminal blocks |
| Model Number | : | 3214322 |
| Manufacturer Part Number | : | 3214322 |
Dispatch within 10 days
₹1,854.30 – ₹1,918.02
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Output Current | 6.3 A |
|---|
Environmental
| Vibration / Shock Rating | EN 50155 vibration 5 Hz to 150 Hz, 0.58 g, shock 5 g, 30 ms, test passed |
|---|---|
| Operating Temperature Range | -60 °C to 110 °C |
Physical
| Dimensions (L×W×H) | 94.5 mm × 6.2 × 92.7 mm |
|---|
