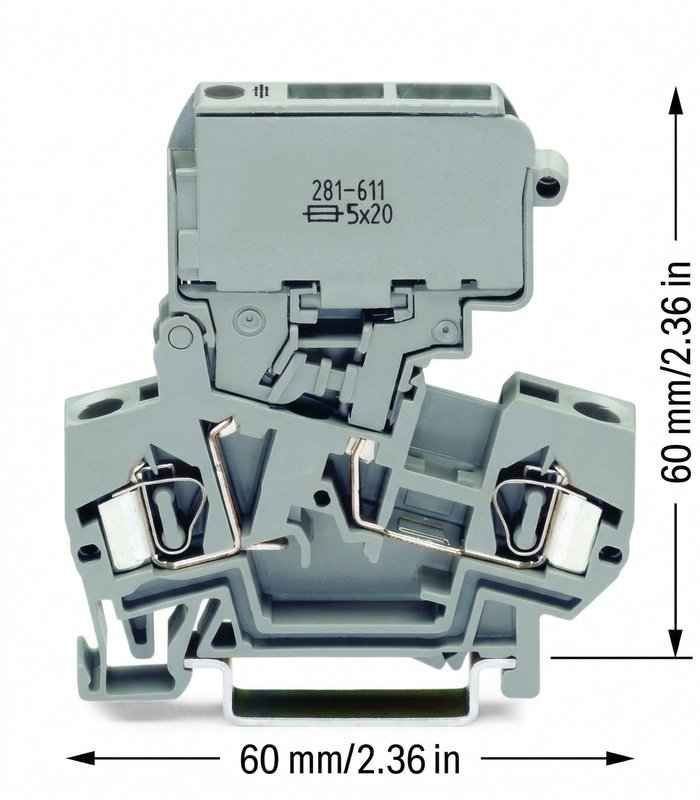

WAGO 281-611 is a 2-conductor fuse terminal block with CAGE CLAMP® connection and a pivoting fuse holder for 5 × 20 mm cylindrical miniature fuses. The official WAGO datasheet shows a rated current of 10 A, rated voltage of 800 V, front-entry wiring, 8 mm width, gray PA66 housing, and DIN-35 rail mounting. It is the version without blown-fuse indication and requires an end plate at the end of the assembly.
Weidmuller 1521850000 Terminal Block
₹100.62 – ₹16,099.00
Phoenix 3214322 Fuse Terminal Block
₹1,854.30 – ₹1,918.02
WAGO 281-611 Fuse Terminal Block
| Brand | : | WAGO |
| Category | : | Fuse / disconnect terminal blocks |
| Model Number | : | 281-611 |
| Manufacturer Part Number | : | 281-611 |
Dispatch within 10 days
₹777.24 – ₹1,859.00
0
People watching this product now!
Description
Specification
Electrical Input/Output
| Output Voltage | 800 V |
|---|---|
| Output Current | 10 A |
Physical

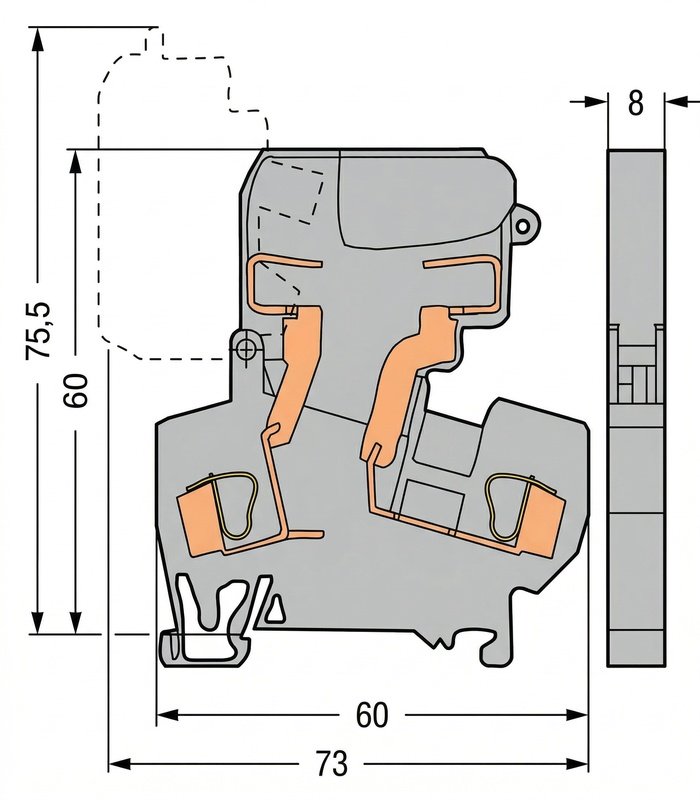

| Dimensions (L×W×H) | 60 mm × 8 mm × 60 mm |
|---|---|
| Enclosure / Material | Polyamide (PA66) |
Contact us for Data Sheet
